Glass - Door - LH - Front (Adjust): Notes
Last modified: 10/12/2023 21:09:32
NOTE:
See PERSONAL PROTECTION
to make sure wearing proper PPE when performing the below procedure.
Revision History:
- 2023-12-11: Updated the original nonadjustable correction code to the new adjustable one.
- 1454796-00-A TOOLKIT, WINDOW SWITCH
WARNING:

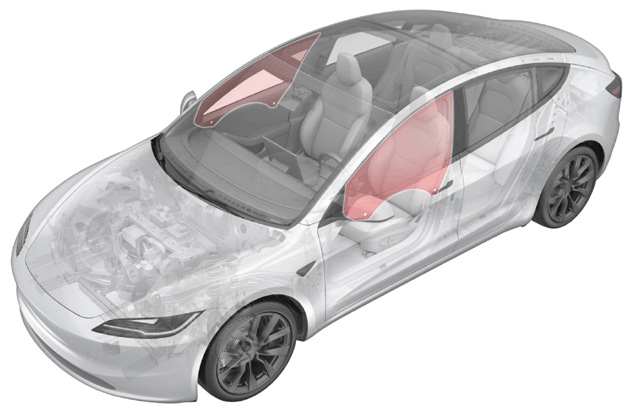

The side impact airbag deployment depends on the front door sensor's ability to detect a side impact from air pressure. Make sure that there are no uncovered holes in the front door shells. Additionally, always reinstall plugs or tape when servicing or inspecting the front doors and their components.
NOTE:
Gap and flush specifications can be found in the "Inspection Standards" section of the Theory of Operations.
TORQUE SPECIFICATIONS - GLASS - DOOR - LH - FRONT (ADJUST)
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolts (x2) that attach the LH front window glass to the regulator isolator clamps |
|
Reuse | ||
| Nuts (x2) that attach the LH front window regulator to the inner door |
|
Reuse |
