Adjust Isolation Clamps

Check the LH front window glass fitment with a gap and flush tool.

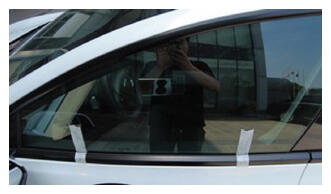

Place two pieces of masking tape over the window glass and LH front door outer belt seal, and then carefully cut across the tape where the glass meets the seal, as illustrated.
Tip: This step will help you remember the original position of the glass while you are adjusting it.

Courtesy of TESLA, INC.
Open the LH front door and then lower the LH front window.
Remove the LH front door trim panel. See INTERIOR TRIM - DOOR TRIM - FRONT DOOR TRIM PAD - DOOR TRIM ASSEMBLY - LH - REMOVE AND REPLACE .

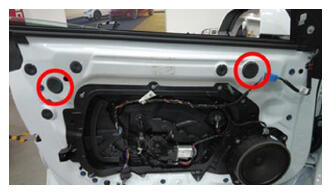

Remove the regulator isolation clamp door plugs.

Courtesy of TESLA, INC.

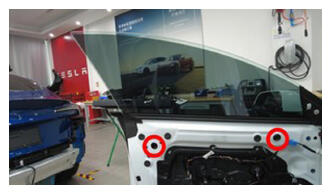

Connect the window switch special tool to the door electrical harness, and then raise the LH front window to access the regulator isolation clamps.
Loosen the bolts (x2) that attach the window glass to the regulator isolation clamps by half a turn.
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- 2 in extension
- Ratchet/torque wrench
Courtesy of TESLA, INC.
Close the LH front door, and then use the window switch special tool to raise the LH front window fully.
Adjust the window glass position, and then hand tighten the bolts (x2).
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.
Check the LH front window glass fitment with a gap and flush tool.
- If glass fitment is within spec, go to step 8.
- If glass fitment cannot be brought within spec by adjusting the isolation clamps, proceed to the next step.
