Trunk Hinges and Fittings - Bumper - Overslam AT Lower Liftgate - Remove And Replace: Remove

  1. Open the liftgate.
  2. Rotate the LH liftgate bump stop counter clockwise to remove it from the vehicle.
    NOTE: Count the number of turns it takes to remove the bump stop.

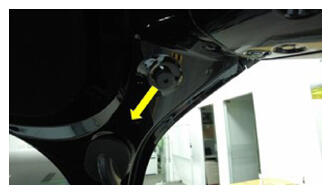

    G16588093Courtesy of TESLA, INC.

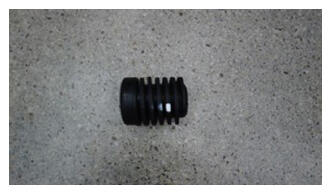

    G16588094Courtesy of TESLA, INC.
