Trunk Hinges And Fittings - Power Trunk Hinge LH - Remove And Replace: Install

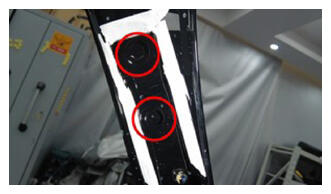

Position the new power trunk hinge on the vehicle, and then install the nuts (x2) that attach the power trunk hinge to the vehicle.
24 N.m (17.7 lbs-ft)

NOTE: Align the hinge with the masking tape on the body.

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Cordless hex driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.
With assistance, hand-tighten the bolts (x2) that attach the trunk power hinge to the trunk lid.
NOTE: Align the hinge with the masking tape on the trunk lid.

Courtesy of TESLA, INC.
Remove the masking tape from the vehicle.
Install the trunk power strut and trunk garnish. See TRUNK HINGES AND FITTINGS - POWER STRUT LH - REMOVE AND REPLACE .
Close the trunk, and then check trunk gap and flush.
NOTE: If necessary, adjust the hinge bolts and trunk latch to modify the trunk lid gap/flush. Assistance is recommended.
When trunk lid gap/flush is finalized, open the trunk and torque the bolts that attach the power trunk hinge to the trunk lid.
24 N.m (17.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Cordless hex driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.
If necessary, apply touch-up paint to the trunk hinge bolt heads.
NOTE: Shake the paint container before applying paint.
