Trunk Hinges And Fittings - Power Strut LH - Remove And Replace: Remove

  1. Remove the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .

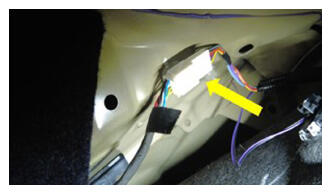

  2. Near the LH side of the vehicle interior where the trunk garnish was removed, disconnect the electrical harness from the trunk power strut electrical connector.
    G16588102Courtesy of TESLA, INC.

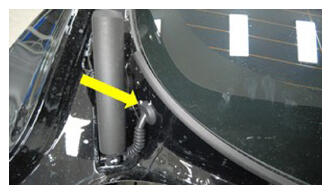

  3. Push the trunk power strut rubber grommet through the body of the vehicle.
    G16588103Courtesy of TESLA, INC.

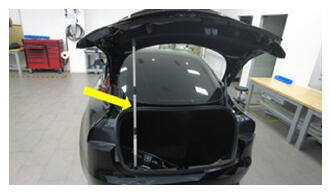

  4. Support the trunk with a prop.
    G16588104Courtesy of TESLA, INC.

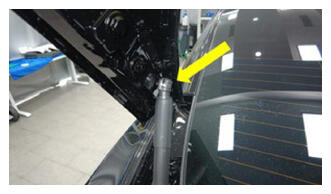

  5. Release the clip that attaches the upper end of the trunk power strut to the upper trunk lid ball stud.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16588106Courtesy of TESLA, INC.

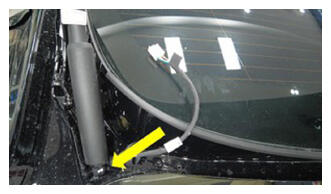

  6. Release the clip that attaches the lower end of the trunk power strut to the lower trunk lid ball stud.
    G16588107Courtesy of TESLA, INC.

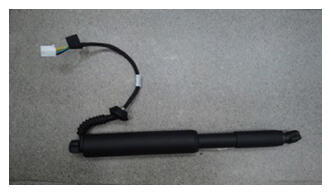

  7. Remove the power strut from the vehicle.
    G16588108Courtesy of TESLA, INC.
