Trunk Hinges And Fittings - Power Strut LH - Remove And Replace: Install

  1. Clean both ball joints on the vehicle with an IPA wipe before installing the strut.

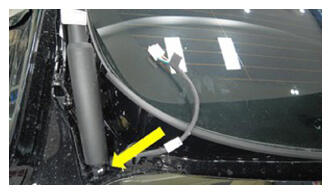

  2. Install the clip that attaches the lower end of the trunk power strut to the lower trunk lid ball stud.
    CAUTION: Make sure that the clips that attach the power strut ends to the trunk are securely attached to avoid the strut to become loose and damaged.
    G16588109Courtesy of TESLA, INC.

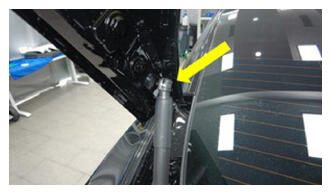

  3. Install the clip that attaches the upper end of the trunk power strut to the upper trunk lid ball stud.
    G16588110Courtesy of TESLA, INC.
  4. Remove the prop supporting the trunk.

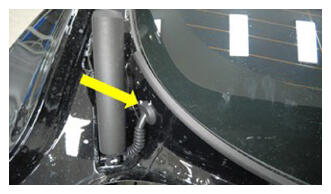

  5. Pull the trunk power strut rubber grommet through the body of the vehicle.
    G16588111Courtesy of TESLA, INC.

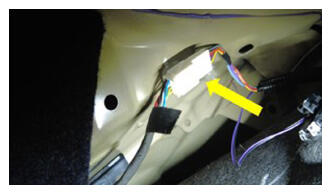

  6. Connect the electrical harness to the trunk power strut electrical connector.
    G16588112Courtesy of TESLA, INC.
  7. Install the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .
