Trunk Hinges And Fittings - Overslam Bump Stop - Remove And Replace: Remove

  1. Open the liftgate.

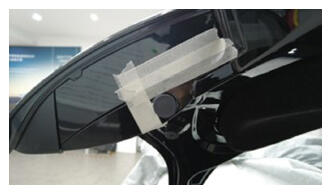

  2. Apply masking tape around the bump stop to protect the paint.
    G16588097Courtesy of TESLA, INC.

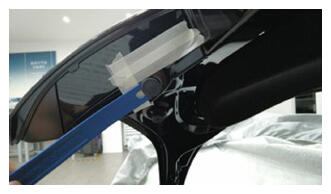

  3. Use a plastic trim tool to remove the bump stop.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16588099Courtesy of TESLA, INC.

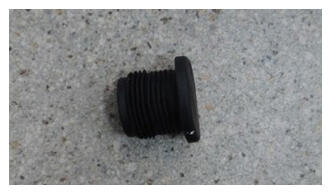

    G16588100Courtesy of TESLA, INC.
