Rear Door Hinges And Fittings - Hinge Rear Lower Left - Remove And Replace: Remove
- Open all four doors and lower all four windows.

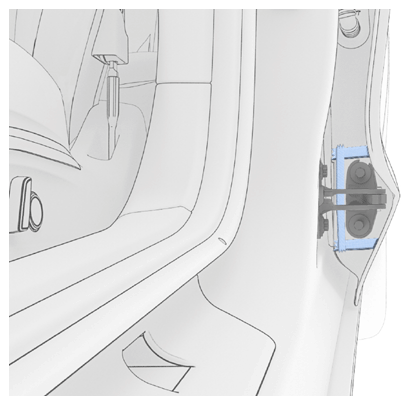

- Apply tape to the rear door to mark the lower hinge location.

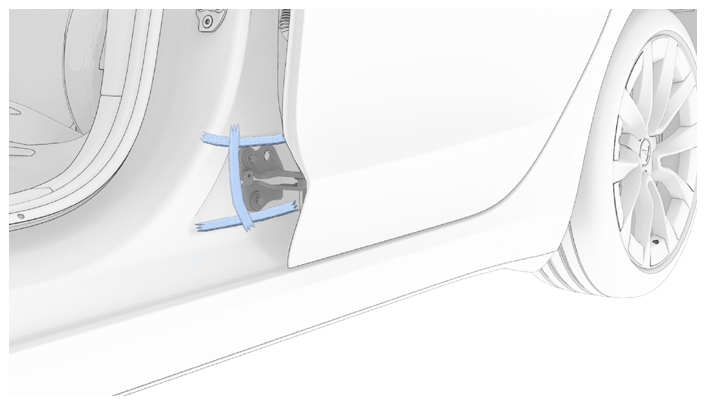

- Apply tape to the body to mark the rear lower hinge location.

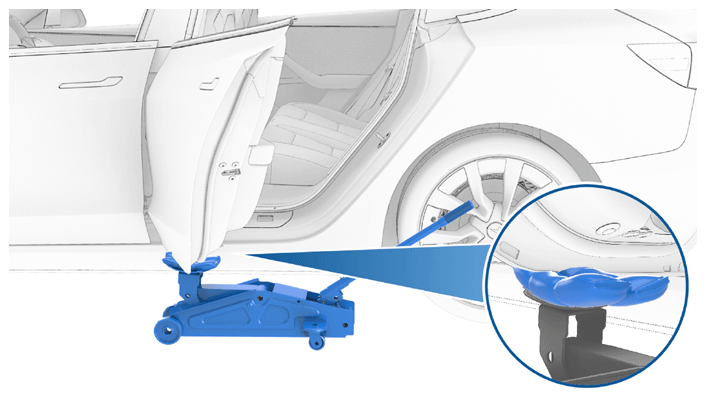

- Use a jack to support the LH rear door from the bottom.NOTE: Make sure to use soft material to protect the painted surface.

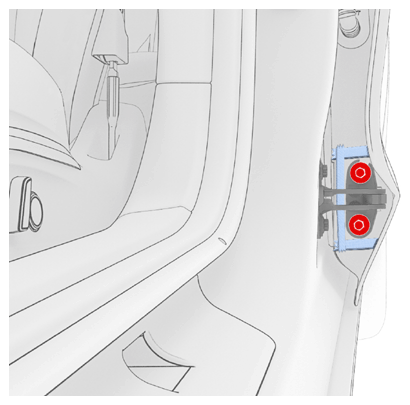

- Remove the bolts (x2) that attach the lower door hinge to the LH rear door.
Tip: Use of the following tool(s) is recommended:
- 6 in extension
- Flex head ratchet/flex head torque wrench
- 10 mm socket
- Remove the bolts (x2) that attach the lower door hinge to the body.NOTE: Support the door hinge to make sure it does not fall in the door jam.
Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- 13 mm socket

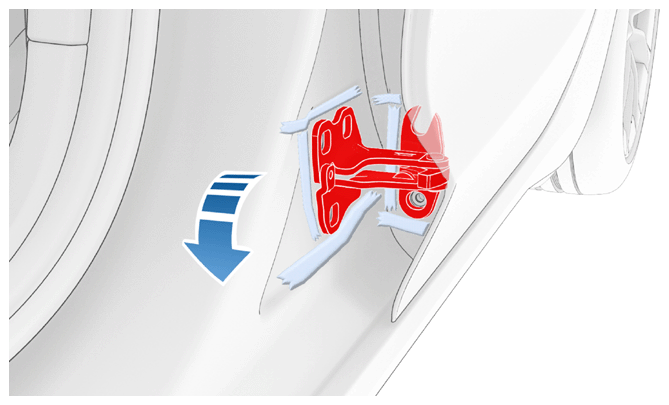

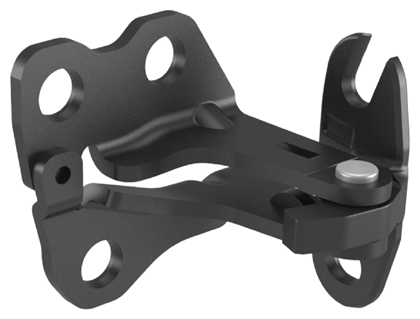

- Carefully remove the LH rear door lower hinge from the vehicle.
