Hood Latch And Release - Hood Latch Double Pull Single Actuator - Remove And Replace: Remove

NOTE: If the hood latch does not open electronically, use the manual front trunk tool specified below to open the hood.
  1. Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
  2. Remove the cabin intake duct. See CABIN HVAC - HVAC, FRESH AIR GUTTER, ASSEMBLY - REMOVE AND REPLACE
  3. Remove the access panel. See FRONT BUMPER FASCIA - ASSEMBLY, ACCESS PANEL - REMOVE AND REPLACE .
  4. Remove the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
  5. Release the hood latch actuator cable from the hood latch.
    NOTE: Release the clip before removing the actuator cable from the latch arm.
    G16588047Courtesy of TESLA, INC.
  6. Disconnect the electrical connector from the hood latch actuator.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G16588048Courtesy of TESLA, INC.

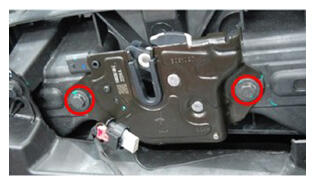

  7. Remove the bolts (x2) that attach the hood latch actuator to the front end carrier, and then remove the actuator from the vehicle.
    NOTE: Mark the latch actuator location on the front end carrier.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 2 in extension
    • Ratchet/torque wrench
    G16588049Courtesy of TESLA, INC.
    G16588050Courtesy of TESLA, INC.
