Electrical - B-Pillar Camera - Far Field Side Camera, LH - Remove And Replace: Remove
- Remove the LH B-pillar applique. See EXTERIOR TRIM FITTINGS - LHD - ASSEMBLY B-PILLAR APPLIQUE LH - REMOVE AND REPLACE .

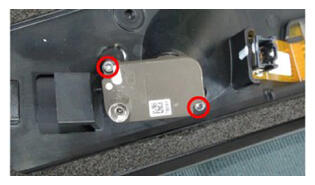

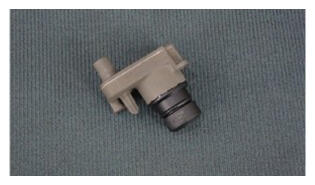

- Remove the bolts (x2) that attach the LH B-pillar camera to the LH B-pillar applique, and then remove the camera from the B-pillar applique.NOTE: Remove the bolts and wiggle the camera to clear the o-ring from the LH B-pillar applique.
Tip: Use of the following tool(s) is recommended:
- Torx T8 bit
- Ratchet/torque wrench
