Trunk Latch - Trunk Striker - Remove And Replace: Remove

  1. Remove the rear trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
  2. Use masking tape to mark the location of the trunk striker.
  3. Remove the bolts that attach the trunk striker to the body, and then remove the striker from the vehicle.

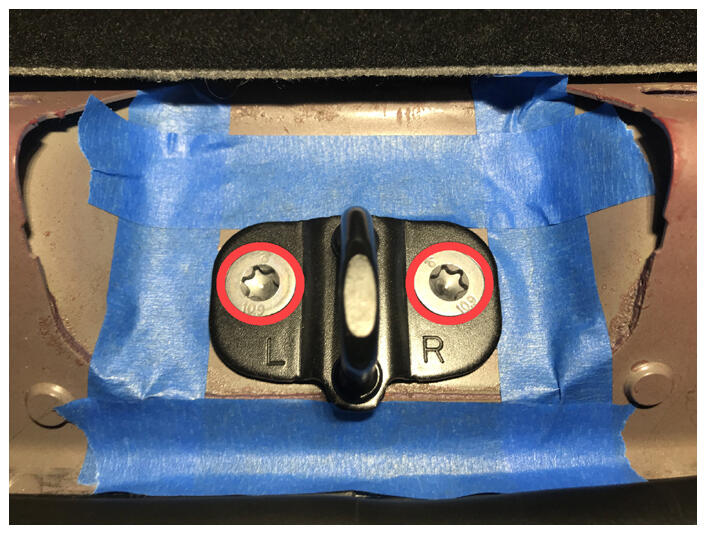

    G16587881Courtesy of TESLA, INC.

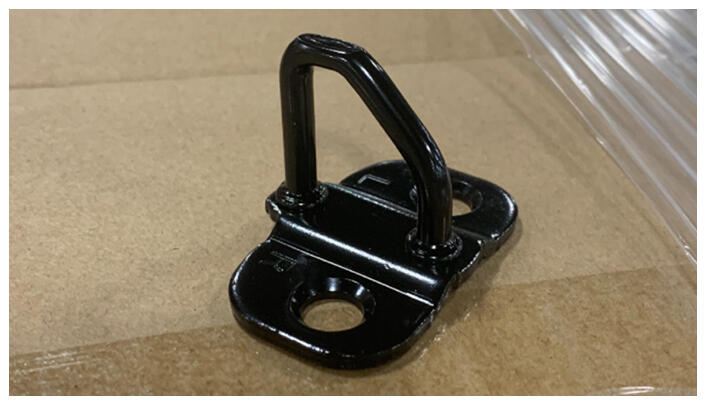

    G16587882Courtesy of TESLA, INC.
