Front Seat Assemblies - 1st Row Headrest Assembly - Remove And Replace: Remove
- Open the LH doors and lower LH windows.

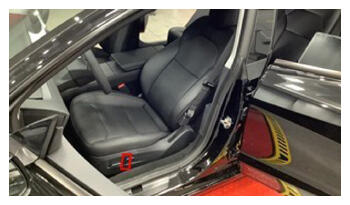

- Partially recline the driver seatback to provide more working room for headrest removal.

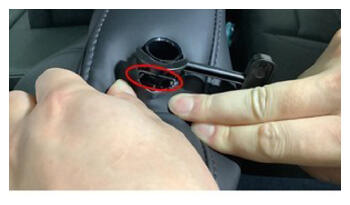

- Depress the material on the LH side of the outboard headrest post to expose the retaining spring that restrains the post into the driver seatback.

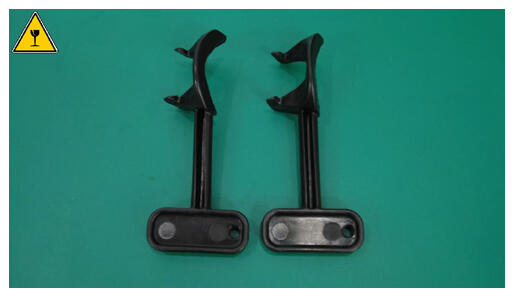

- With the headrest removal tool handle horizontal and the tool tabs pointing down, insert the tabs into the LH side of the outboard headrest post.NOTE: The shaft of the tool points to the rear of the vehicle.WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.multimedia:A supplement to the article is available.

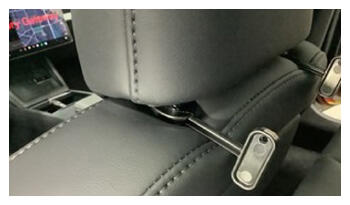

- Press the headrest removal tool in and down, rotate the tool handle clockwise to vertical to release the spring from the headrest post, and then leave the tool attached.
- Repeat step 3 to 5 for the LH side of the inboard headrest post.

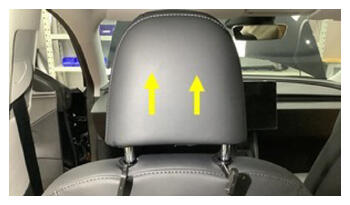

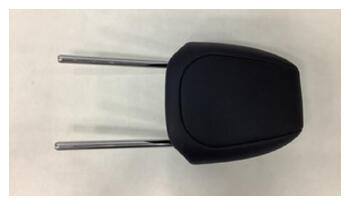

- Remove the headrest from the driver seatback by pulling it straight up.
- Rotate the headrest removal tool handles counter-clockwise to horizontal, and then remove the tools from the driver seatback.
