2nd Row Seat Frame - 2nd Row Cushion Bracket - Remove And Replace: Remove
- Remove the 2nd row seat LH side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE
- Remove the 2nd row seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE
- Remove the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE
- Remove the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE
- Remove the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE

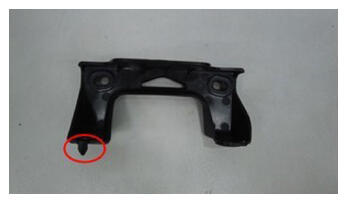

- Remove the bolts (x2) securing the 2nd row seat cushion bracket and then remove the bracket from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- 4 in extension
- 10 mm socket
- Ratchet/torque wrench
- Hexagon - 1060071-00-A (for installation only)
