A-B-C Post Interior Trim - Trunk Sill - Remove And Replace: Remove

  1. Remove the rear trunk load floor assembly. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
  2. Release the clips that attach the trunk sill trim to the body.

    Tip: Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.

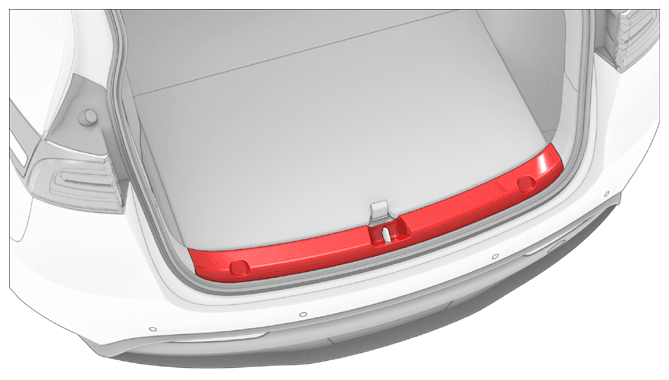

    G16590265Courtesy of TESLA, INC.

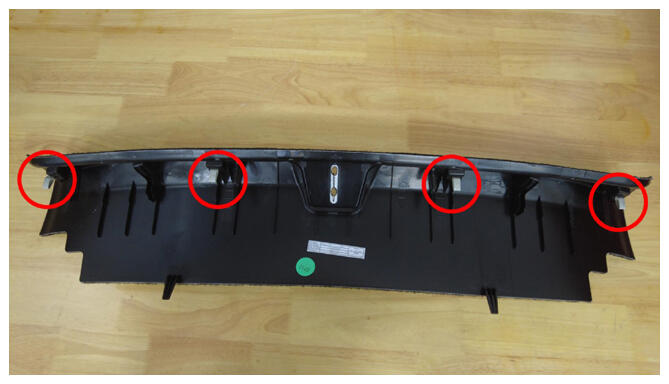

    G16590266Courtesy of TESLA, INC.
  3. Remove the trunk sill trim from the vehicle.

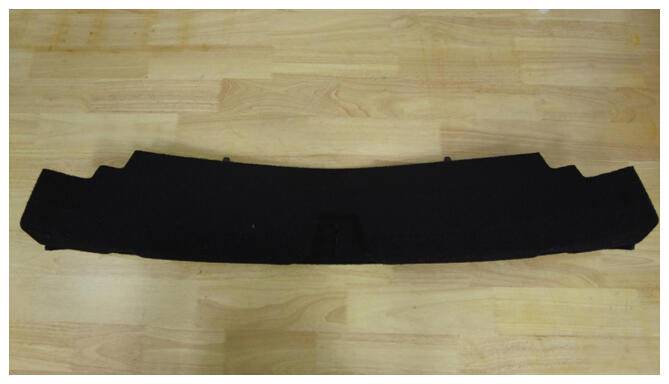

    G16590267Courtesy of TESLA, INC.
