A-B-C Post Interior Trim - Trunk Sill - Remove And Replace: Install

  1. Align the trunk latch with the slot in the trunk sill trim, align the long tabs (x2) with the slots on the trunk lid, and then press down on the trim to attach all remaining clips and tabs.

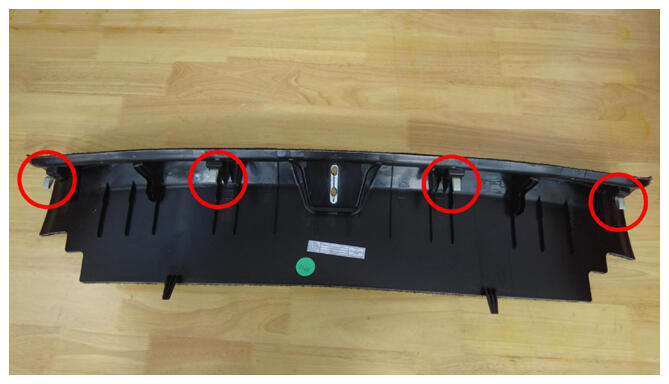

    G16590268Courtesy of TESLA, INC.

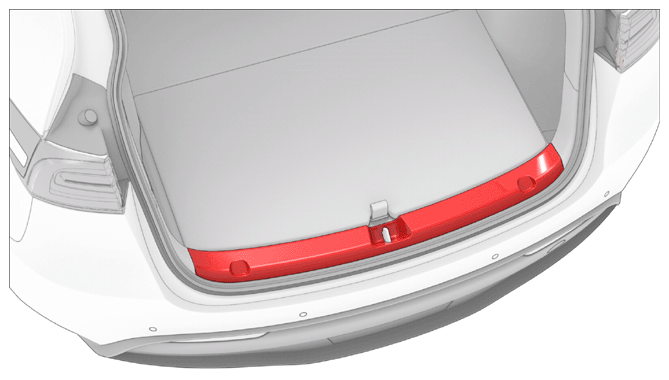

    G16590269Courtesy of TESLA, INC.
    NOTE: Make sure that the trunk seal overlaps the trunk sill trim.
  2. Install the rear trunk load floor.
