Headliner - Rear Map Lamp - Remove And Replace: Remove

  1. Remove the LH side rail assembly. See A - B - C Post Interior Trim - Side Rail Assembly, LH - Remove And Replace .
  2. Remove the LH coat hook assembly. See Headliner - Coat Hook Assembly LH - Remove And Replace .

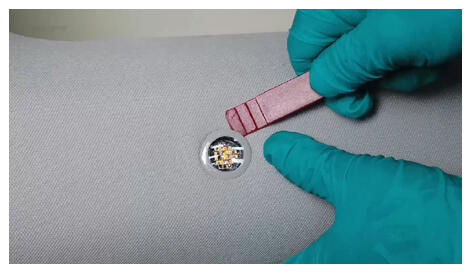

  3. Remove the LH map lamp bezel from the headliner.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16590616Courtesy of TESLA, INC.
    G16590617Courtesy of TESLA, INC.
  4. Partially remove/lower the headliner.
    NOTE: 2x clips, 1x locating pin. Pull the headliner trim at the rear LH side no more than 10cm (4in) to get access to the map light.
    G00666096Courtesy of TESLA, INC.
  5. Disconnect the electrical connector from the LH map lamp.
    G16590618Courtesy of TESLA, INC.
  6. Use a Phillips screwdriver to remove the bolt that attaches the LH map lamp to the headliner.
    G16590619Courtesy of TESLA, INC.
  7. Remove the LH map lamp to the headliner.
    G16590620Courtesy of TESLA, INC.
