Headliner - Rear Map Lamp - Remove And Replace: Install

  1. Install the LH map lamp to the headliner.

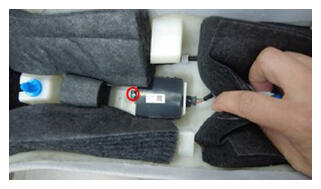

  2. Use a Phillips screwdriver to install the bolt that attaches the LH map lamp to the headliner.

    0.3 N.m (3 lbs-in)

    G16590621Courtesy of TESLA, INC.
  3. Connect the electrical connector to the LH map lamp.
  4. Install the partially removed headliner.
    NOTE: 2x clips, 1x locating pin. First push the locating pin in the hole and then push the headliner until the clips engage.
    GEMPTY001Courtesy of TESLA, INC.
  5. Install LH map light bezel to headliner
    NOTE: 2x tabs, 1x alignment pin. Alignment pin should face upward.
    GEMPTY001Courtesy of TESLA, INC.
    GEMPTY001Courtesy of TESLA, INC.
  6. Install the LH coat hook assembly. See Headliner - Coat Hook Assembly LH - Remove And Replace .
  7. Install the LH side rail assembly. See A - B - C Post Interior Trim - Side Rail Assembly, LH - Remove And Replace .
  8. Connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
  9. In Toolbox, click the Actions  tab, and then search for "Rear Dome Lights".
  10. Click on TEST-SELF_VCLEFT_REAR-DOME-LIGHTS Search for routine in Toolbox Low Voltage Controllers, and then click Run  , and allow the routine to complete.
  11. Disconnect the laptop with Toolbox 3 from the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
  12. Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
