Headliner - Magnetic Visor Check - Remove And Replace: Remove

Rotate the LH sun visor away from the check base.
Use a pry tool to release the 2 tabs that attach the check base to the headliner.
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

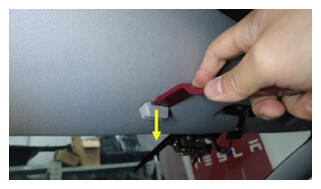

Tip: Use a non-marring tool to remove the LH magnetic visor check base from the headliner.

Courtesy of TESLA, INC.

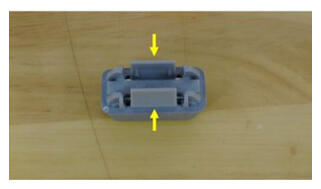

Remove the check base from the headliner.

Courtesy of TESLA, INC.
