Headliner - Headliner Assembly - Remove And Replace: Remove

  1. Remove the LH and RH sun visors. See SUN VISORS - SUN VISOR ASSEMBLY, LH - REMOVE AND REPLACE .

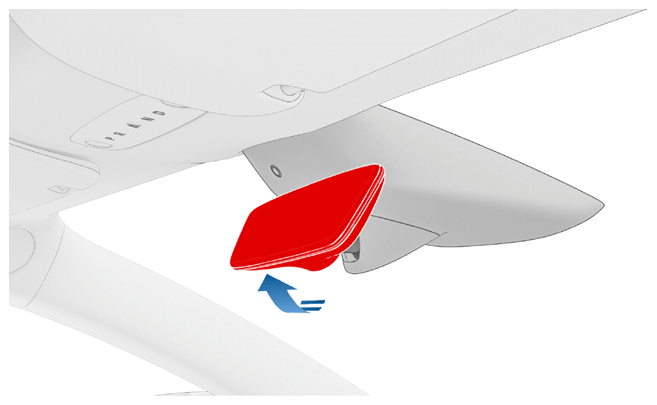

  2. Flip the rear view mirror upwards to provide more space for releasing the front headliner.
    CAUTION: Make sure not to damage the rear view mirror when releasing the headliner.
    G16590580Courtesy of TESLA, INC.
  3. Remove the LH side rail trim. See A - B - C POST INTERIOR TRIM - SIDE RAIL ASSEMBLY, LH - REMOVE AND REPLACE .
  4. Remove the LH 2nd row seat side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  5. Remove the 2nd row seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  6. Remove the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  7. Remove the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  8. Remove the LH middle B-pillar trim. See TRIM - B-PILLAR - MIDDLE - LH - REMOVE AND REPLACE .
  9. Remove the LH upper B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
  10. Push to open the LH rear coat hook.
  11. Use a small flat head screwdriver to pry open the LH rear coat hook screw cover.
    G16590581Courtesy of TESLA, INC.

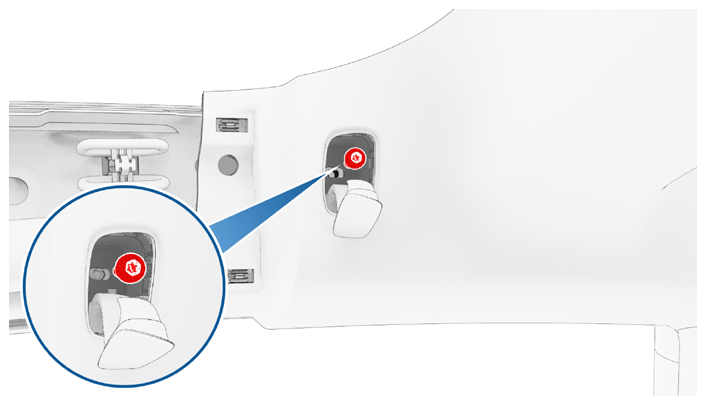

  12. Remove the screw that attaches the LH rear coat hook to the body.

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 2 in extension
    • Torx T25 socket
    • Torque Wrench Hexagon - 1060071-00-A (for installation only)
    NOTE: LH shown, RH similar
    G16590582Courtesy of TESLA, INC.
  13. Repeat step  3 through step  12 on the RH side of the vehicle.
  14. Move the LH and RH front seat fully rearward, and then move the LH and RH seat back to the down position.
  15. Release the brackets that attach the headliner electrical harness to the LH A-pillar area.
    G16590583Courtesy of TESLA, INC.
  16. Disconnect the headliner electrical harness connector.
    G16590585Courtesy of TESLA, INC.

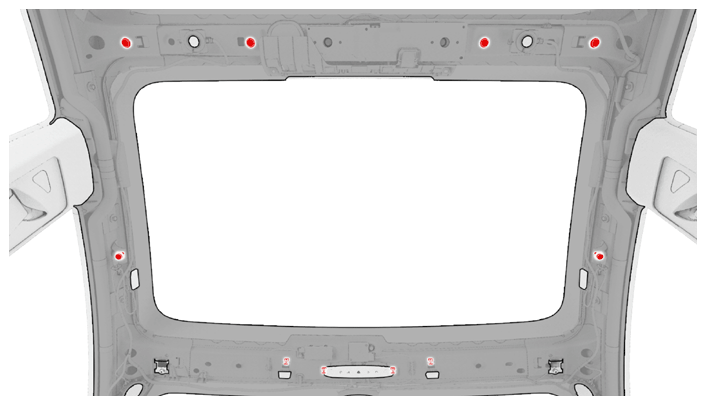

  17. Release the clips (x10) that attach the headliner to the body.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16590586Courtesy of TESLA, INC.

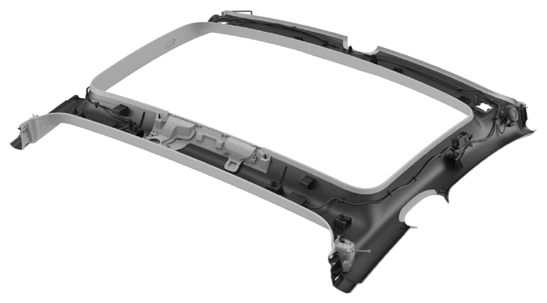

  18. With an assistant, remove the headliner from the vehicle.
    NOTE: Remove the headliner through the front passenger door.
    G16590587Courtesy of TESLA, INC.
