Interior Trim - Center Console - Center Console - Phone Dock - Screw - Remove And Replace: Remove

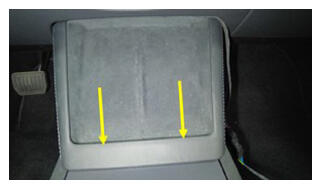

- Tilt the rear of the center console upwards, and pull the center console towards the rear of the vehicle. See CENTER CONSOLE - CENTER CONSOLE, ASSEMBLY - REMOVE AND REPLACE .

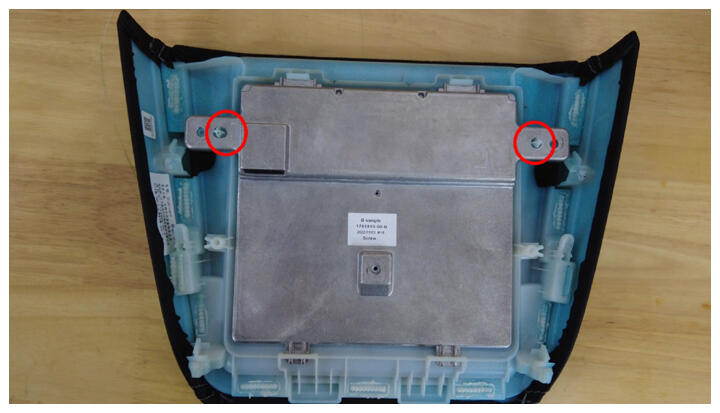

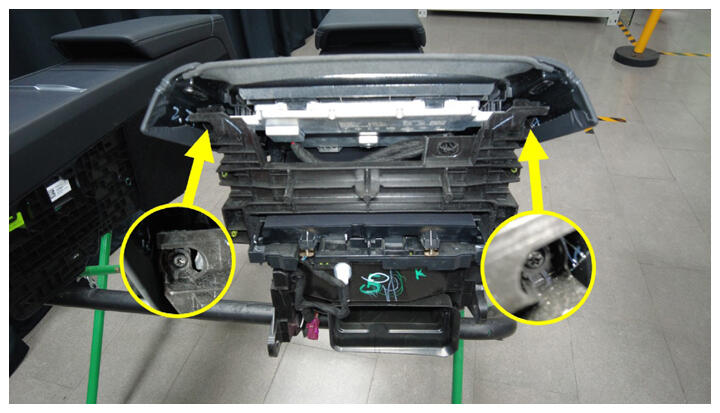

- Remove the screws (x2) that attach the phone dock to the center console assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
- 2 in extension
- Ratchet/torque wrench

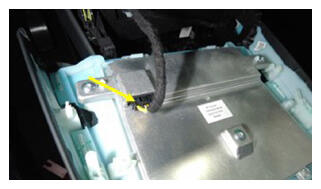

- Disconnect the electrical connector, and then remove the phone dock from the instrument panel.

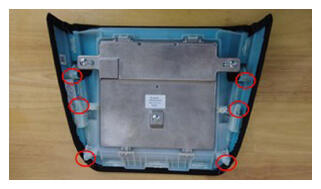

- Release the clips (x2), screw gaskets (x2), and guide tabs (x6) that attach the phone dock to the center console.NOTE: Pull the phone dock assembly out from the bottom side along the tilt angle of the phone dock.

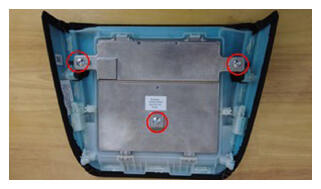

- Remove the screws (x3) that attach the inductive charger to the phone dock.
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
- Ratchet/torque wrench

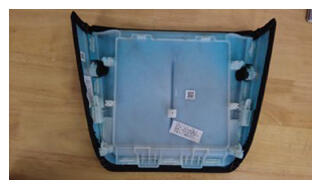

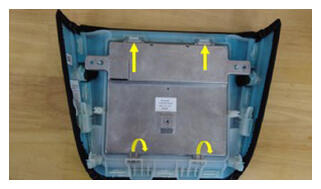

- Release the tabs (x2), datums (x2) and clips (x2) that attach the inductive charger to the phone dock, and then remove the inductive charger from the phone dock.NOTE: Angle the inductive charger up and slide out of the phone dock.
