Interior Trim - Center Console - Center Console - Phone Dock - Screw - Remove And Replace: Install

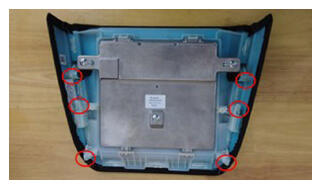

Fasten the tabs (x2), datums (x2) and clips (x2) that attach the inductive charger to the phone dock.

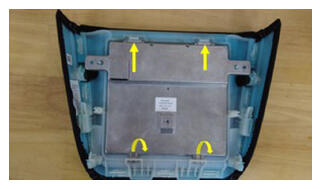

NOTE: Slide the inductive charger datums into the phone dock, and then fully engage the tabs at the top of the phone dock.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

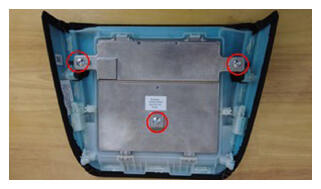

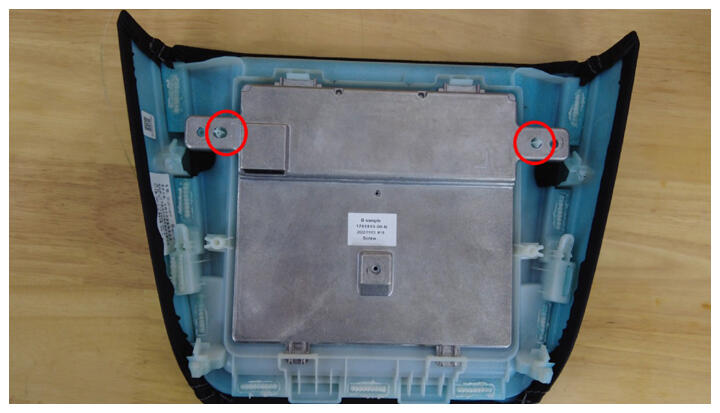

Install the screws (x3) that attach the inductive charger to the phone dock.
1 N.m (.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
- Ratchet/torque wrench
Courtesy of TESLA, INC.

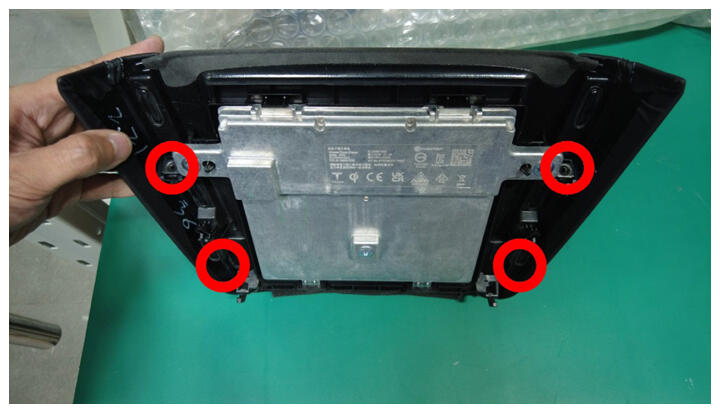

Fasten the clips (x2), screw gaskets (x2), and guide tabs (x6) that attach the phone dock to the center console.
NOTE: Press the phone dock from the bottom up to the inside along the tilt angle of the phone dock assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

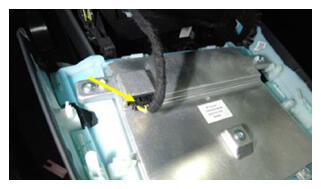

Connect the electrical connector, and then install the phone dock to the instrument panel.

Courtesy of TESLA, INC.

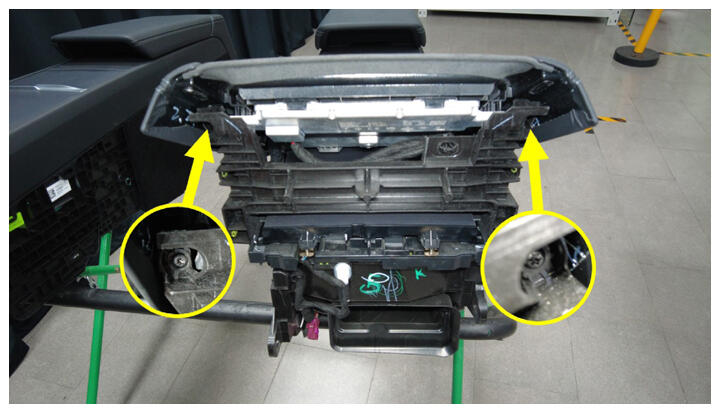

Install the screws (x2) that attach the phone dock to the center console assembly.
1.2 N.m (.9 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
- 2 in extension
- Ratchet/torque wrench
Courtesy of TESLA, INC.
Install the center console. See CENTER CONSOLE - CENTER CONSOLE, ASSEMBLY - REMOVE AND REPLACE .
