Interior Trim - Center Console - Center Console - Phone Dock - Clip - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.

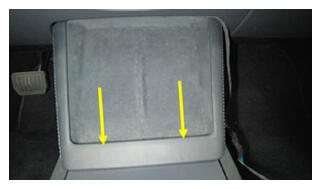

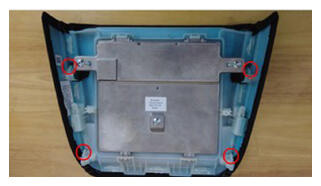

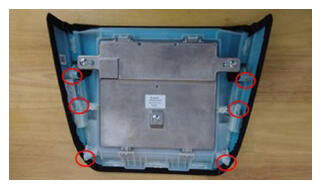

- Release the clips (x4) and tabs (x6) that attach the phone dock to the center console.NOTE: Move the bottom of the phone dock downward along the center console.

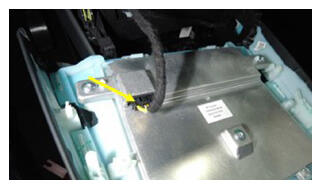

- Disconnect the electrical connector, and then remove the phone dock from the instrument panel.

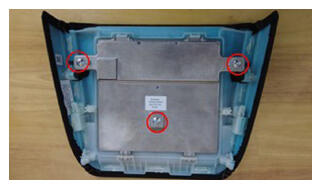

- Remove the screws (x3) that attach the inductive charger to the phone dock.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- Torx T20 socket
- Ratchet/torque wrench

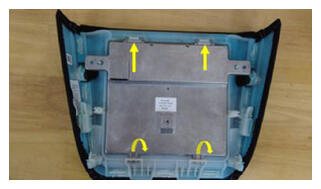

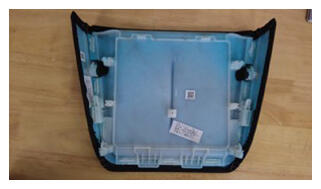

- Release the tabs (x2) and datums (x2) that attach the inductive charger to the phone dock, and then remove the inductive charger from the phone dock.NOTE: Angle the inductive charger up and slide out of the phone dock.
