Headliner - Headliner Assembly - Remove And Replace: Install

  1. With the help of an assistant, move the headliner through the front passenger doorway and into the cabin.

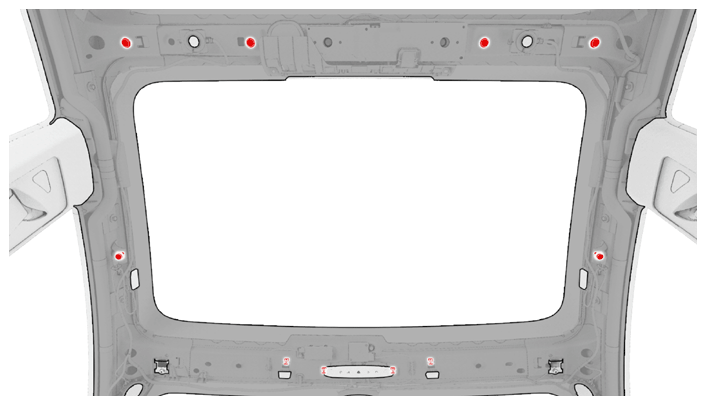

  2. Install the headliner to the body, and then fasten the clips that attach the headliner to the body.
    G16590588Courtesy of TESLA, INC.

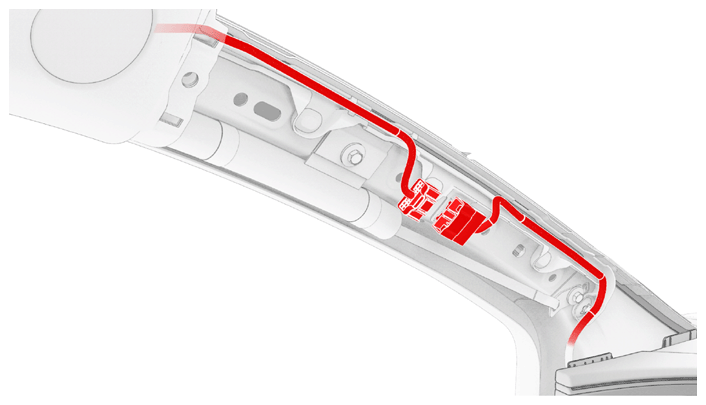

  3. Connect the electrical harness to the headliner connector.
    G16590589Courtesy of TESLA, INC.

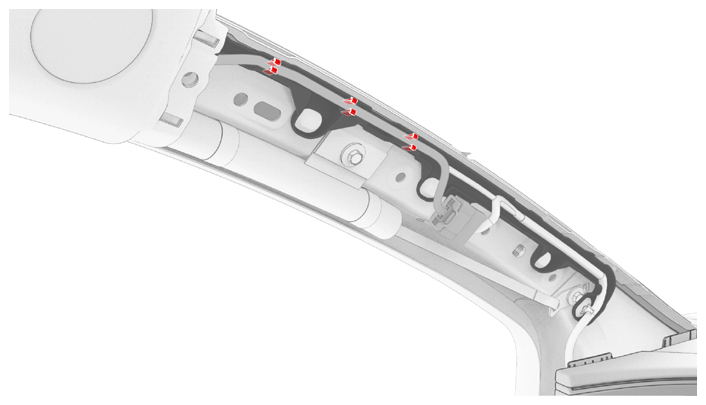

  4. Fasten the clips that attach the headliner electrical harness to the LH A-pillar area.
    G16590590Courtesy of TESLA, INC.
  5. Restore the rear view mirror to original position.
  6. Install the LH and RH sun visors. See SUN VISORS - SUN VISOR ASSEMBLY, LH - REMOVE AND REPLACE .
  7. Move the LH and RH front seats forward.
  8. Push to open the new LH rear coat hook.

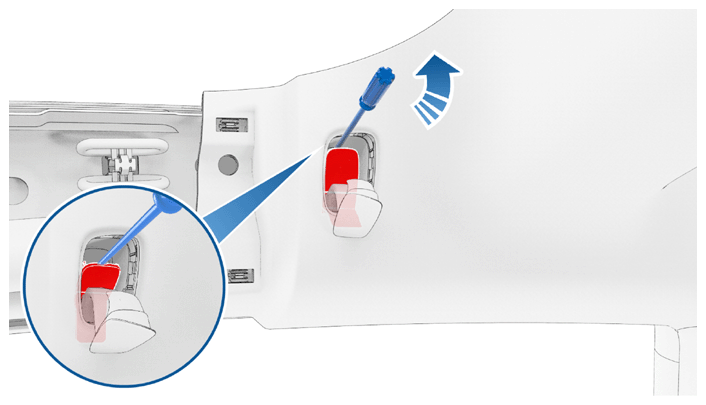

  9. Use a small flat head screwdriver to pry open the new LH rear coat hook screw cover.
    G16590591Courtesy of TESLA, INC.

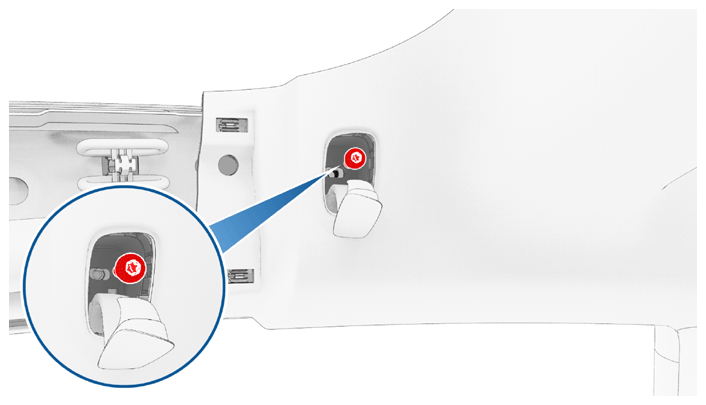

  10. Install the screw that attaches the LH rear coat hook to the body.

    3.5 N.m (2.6 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 2 in extension
    • Torx T25 socket
    • Torque Wrench Hexagon - 1060071-00-A (for installation only)
    NOTE: LH shown, RH similar
    G16590592Courtesy of TESLA, INC.
  11. Close the LH rear coat hook screw cover.
  12. Close the LH rear coat hook.
  13. Install the LH side rail trim. See A - B - C POST INTERIOR TRIM - SIDE RAIL ASSEMBLY, LH - REMOVE AND REPLACE .
  14. Install the LH upper B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
  15. Install the LH middle B-pillar trim. See TRIM - B-PILLAR - MIDDLE - LH - REMOVE AND REPLACE .
  16. Install the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  17. Install the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  18. Repeat step  8 through step  17 on the RH side of the vehicle.
  19. Install the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  20. Install the LH 2nd row seat side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  21. Locally connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
  22. Select the "Actions" tab, search for "TEST-SELF_VCLEFT_REAR-DOME-LIGHTS", click on TEST-SELF_VCLEFT_REAR-DOME-LIGHTS Search for routine in Toolbox Low Voltage Controllers, click "Run", and allow the routine to complete.
  23. Disconnect the laptop.
  24. Reinstall the firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
