Trunk Carpet And Side Finishers - Puddle Lamp - Remove And Replace: Remove
- Remove the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .

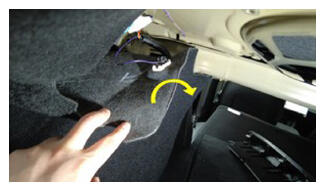

- Slightly lift the upper part of the LH trunk side trim to access the puddle light.
 Courtesy of TESLA, INC.
|

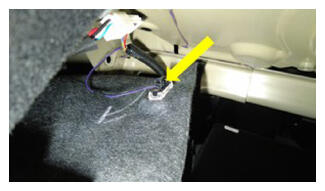

- Disconnect the electrical connector from the puddle light.
 Courtesy of TESLA, INC.
|

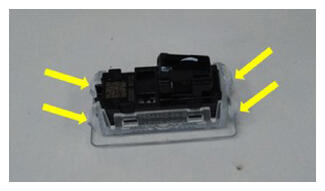

- Release the tabs (x4) that attach the LH puddle light to the vehicle.
 Courtesy of TESLA, INC.
|

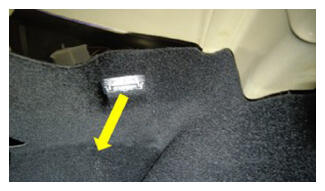

- Remove the LH puddle light.
 Courtesy of TESLA, INC.
|
