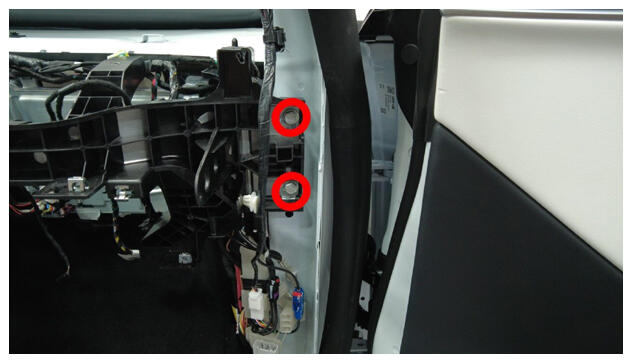

Home >> Tesla >> 2024 >> Model 3 Long Range >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Instrument Panel -- Model 3 >> Instrument Panel >> RHD Instrument Panel - Instrument Panel - Dash Support Frame - Cross Car Beam Assembly (RR) - Remove And Replace >> Install

RHD Instrument Panel - Instrument Panel - Dash Support Frame - Cross Car Beam Assembly (RR) - Remove And Replace: Install

  1. With assistance, position the cross car beam to vehicle for installation.
    NOTE: Use caution not to damage the interior.
  2. Install the bolts (x4) that attach the cross car beam to the body.

    29 N.m (21.4 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Ratchet/torque wrench
    • 15 mm socket
    • 3 in extension
    • Cordless Ratchet/Impact Driver
    G16589796Courtesy of TESLA, INC.
    G16589797Courtesy of TESLA, INC.

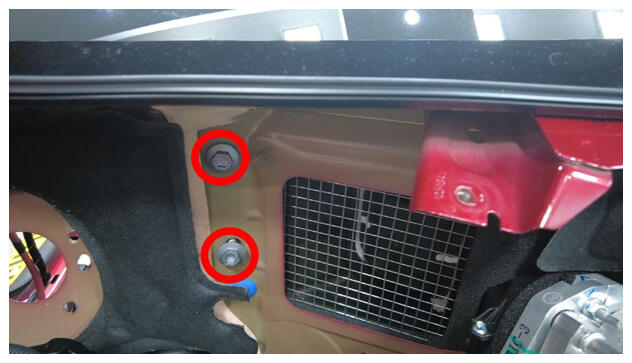

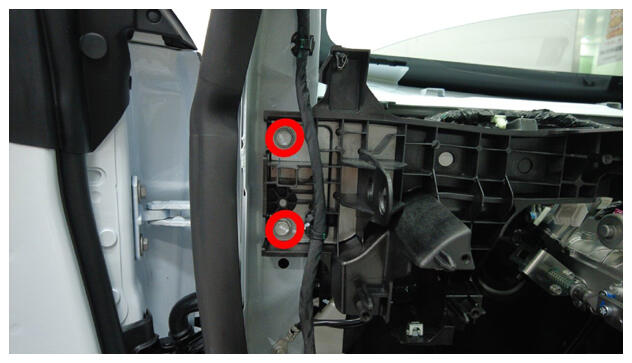

  3. Install the bolts (x2) that attach the steering column to body.

    25 N.m (18.4 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Ratchet/torque wrench
    • 3 in extension
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
    G16589798Courtesy of TESLA, INC.

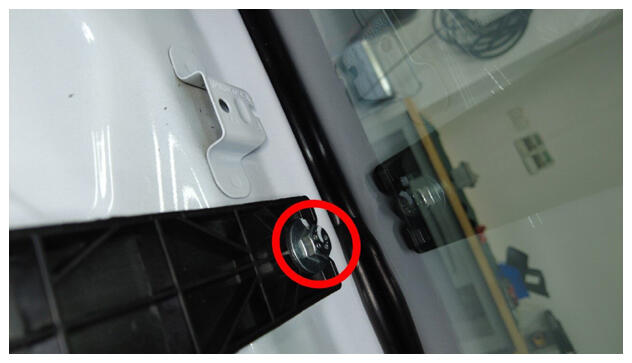

  4. Torque the bolt that attaches the cross car beam to the upper cowl.

    25 N.m (18.4 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Ratchet 3/8 in Dr Stubby
    • 3/8 in Dr. Open Crowfoot 13 mm Socket
    • Flex head ratchet/flex head torque wrench
    G16589799Courtesy of TESLA, INC.

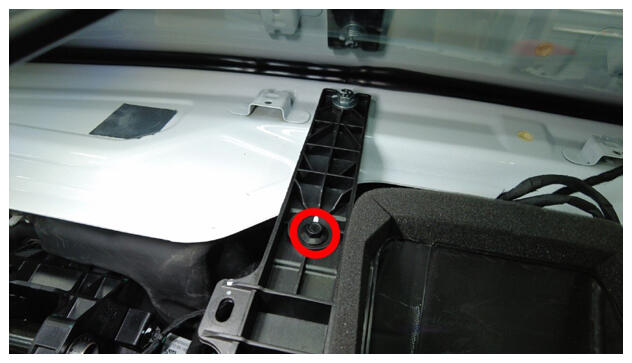

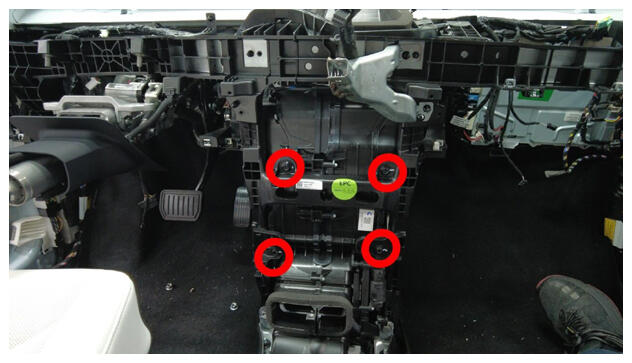

  5. Install the bolts (x5) that attach the cross car beam to the HVAC assembly.

    5.5 N.m (4.1 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Ratchet/torque wrench
    • 10 mm socket
    • 3 in extension
    • Cordless Ratchet/Impact Driver
    G16589800Courtesy of TESLA, INC.
    G16589801Courtesy of TESLA, INC.
  6. Install the bolts (x2) that attach the LH and RH cross car beam brackets to the cross car beam, and the nuts (x2) that attach the LH and RH cross car beam brackets to the body.

    25 N.m (18.4 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench

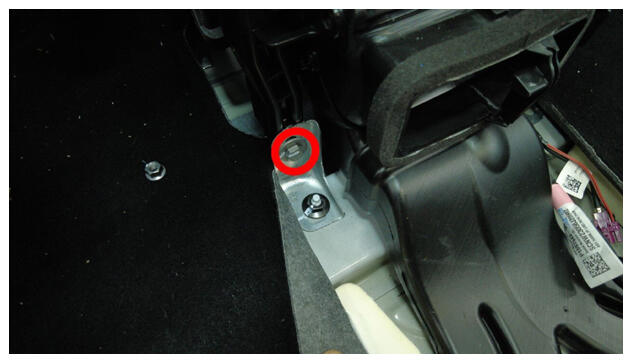

    NOTE: LH Cross Car Beam Bracket
    G16589802Courtesy of TESLA, INC.

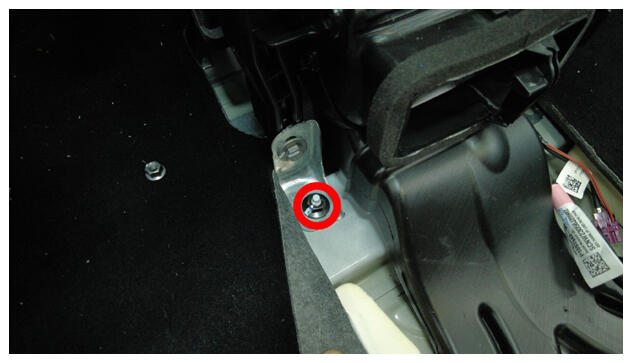

    G16589803Courtesy of TESLA, INC.

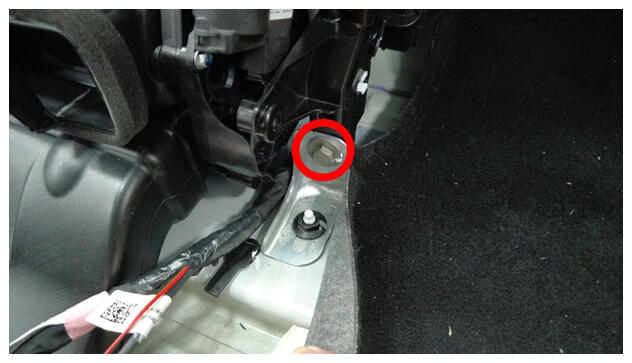

    NOTE: RH Cross Car Beam Bracket

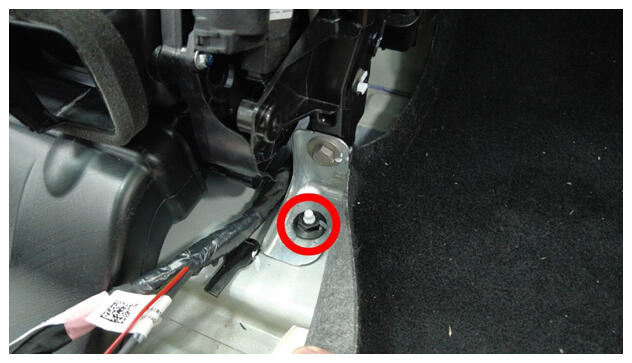

    G16589804Courtesy of TESLA, INC.
    G16589805Courtesy of TESLA, INC.
  7. Install the screws (x4) and datums (x4) that secure the LH and RH center display brackets.

    2.3 N.m (1.7 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 4 in extension
    • Torx T20 socket
    • Ratchet/torque wrench

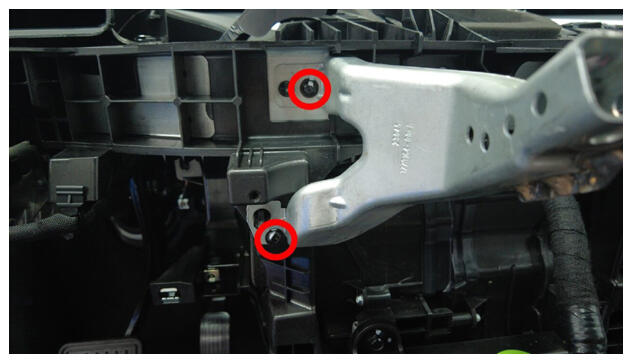

    G16589806Courtesy of TESLA, INC.
    G16589807Courtesy of TESLA, INC.

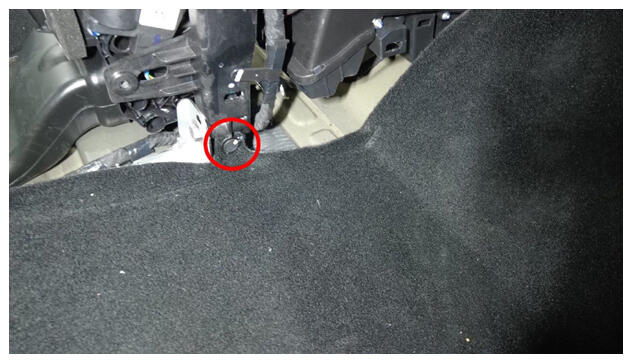

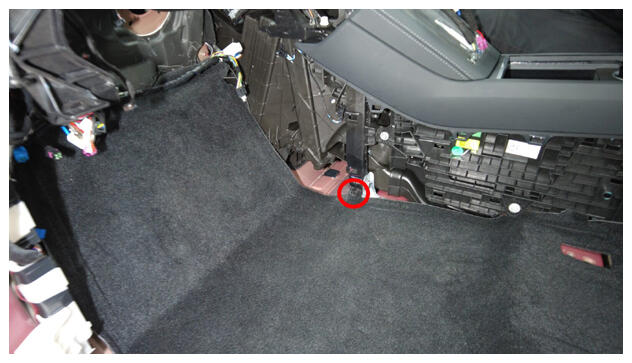

  8. Install the clips (x2) that attach the LH and RH front main carpets to vehicle.
    NOTE: Number of clips on new vehicles may vary.
    G16589808Courtesy of TESLA, INC.
    G16589809Courtesy of TESLA, INC.

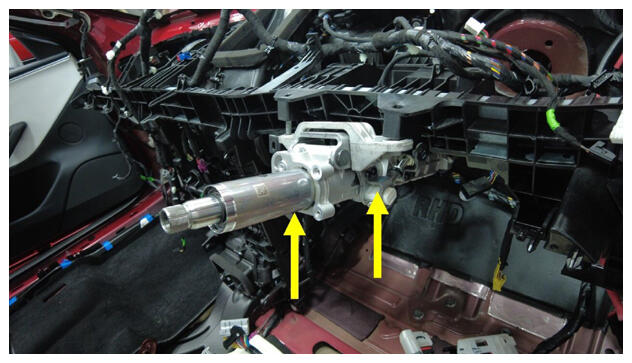

  9. Position the steering column for installation.
    G16589810Courtesy of TESLA, INC.

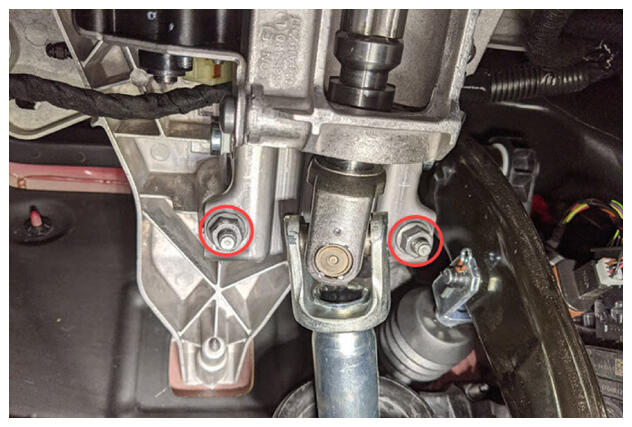

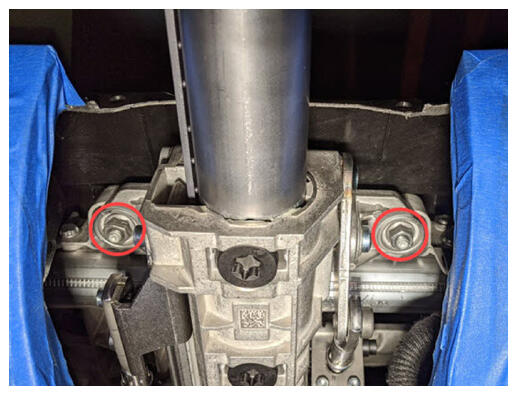

  10. Install the nuts (x4) that attach the steering column to the cross car beam.

    15 N.m (11.1 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Ratchet/torque wrench
    • 3 in extension
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
    G16589811Courtesy of TESLA, INC.
    G16589812Courtesy of TESLA, INC.

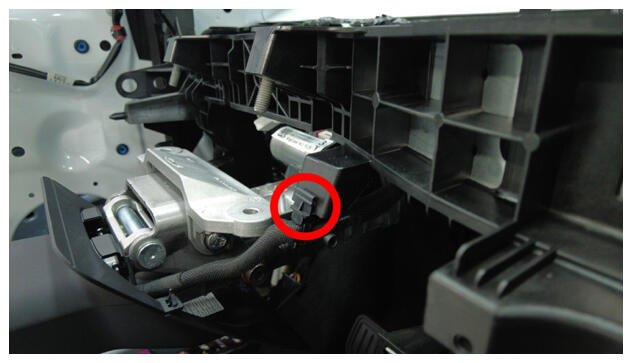

  11. Install the steering column control module (SCCM) wiring harness clip to the cross car beam.
    G16589813Courtesy of TESLA, INC.

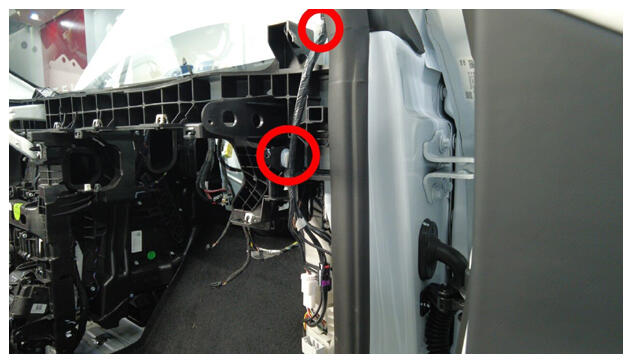

  12. Install the headliner harness clips (x2) on the RH lower A-pillar.
    G16589814Courtesy of TESLA, INC.
  13. Install the wiring harness fixing clips (x4) from the lower part of the dashboard cross car beam.
    NOTE: Number of clips on newer vehicles may vary.

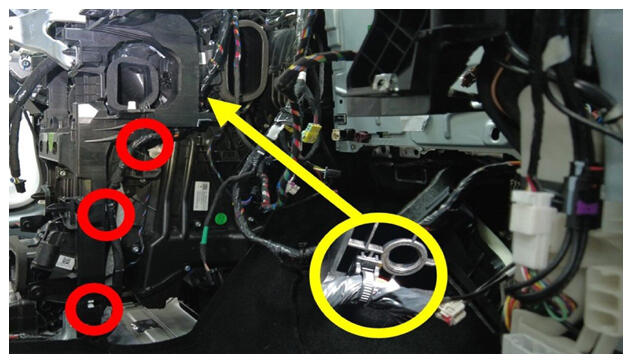

    G16589815Courtesy of TESLA, INC.

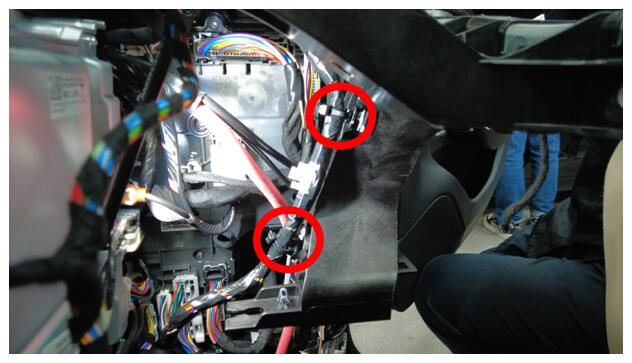

  14. Install the RH wiring harness to the instrument panel mounting brackets (x2).
    G16589816Courtesy of TESLA, INC.

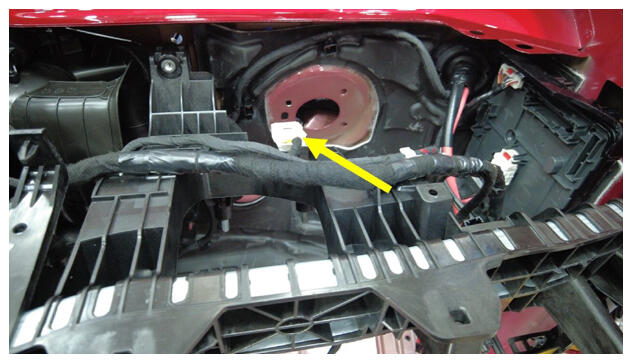

  15. Install the clip that attaches the instrument panel harness connector to the cross car beam assembly.
    G16589817Courtesy of TESLA, INC.

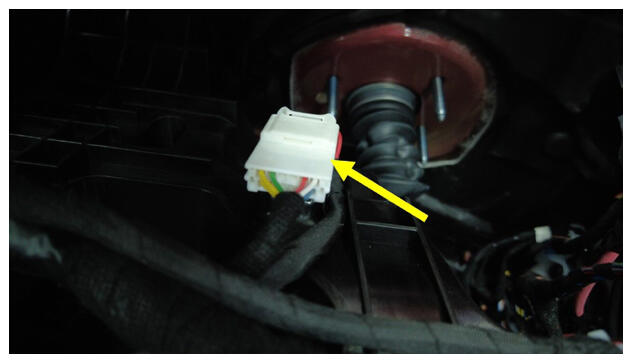

  16. Connect the instrument panel harness connector to the electronic steering column.
    G16589818Courtesy of TESLA, INC.

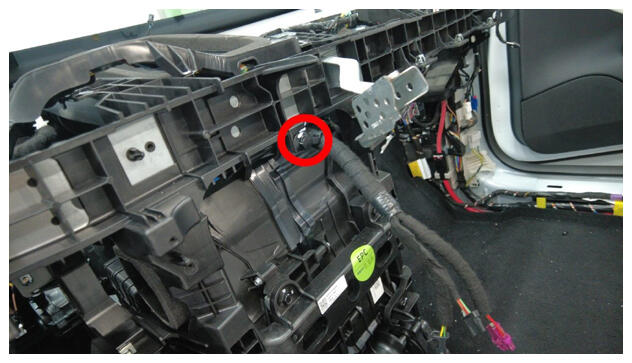

  17. Install the UI harness fixing clip onto the cross car beam.
    G16589819Courtesy of TESLA, INC.

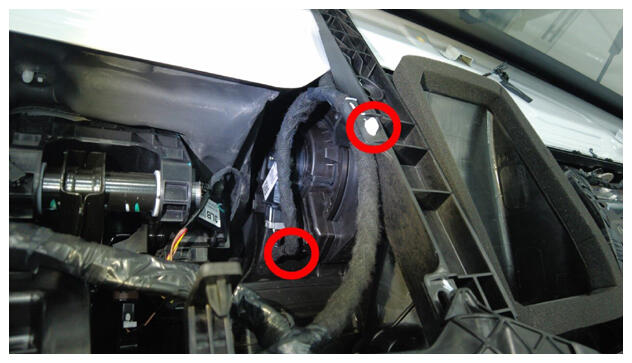

  18. Install the blower motor harness clips (x2) to the cross car beam.
    G16589820Courtesy of TESLA, INC.

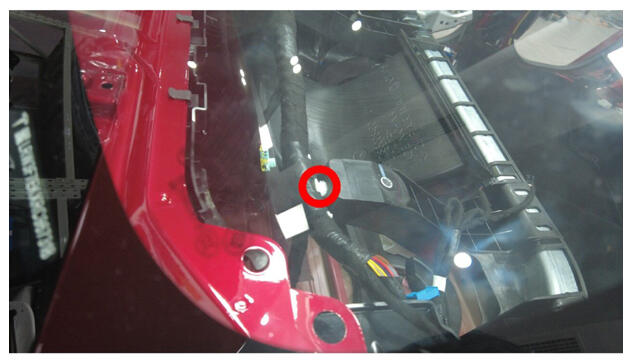

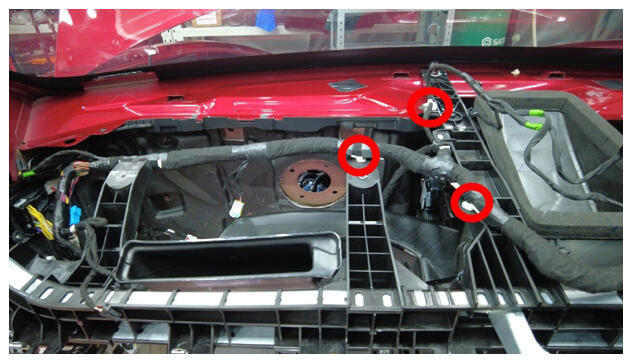

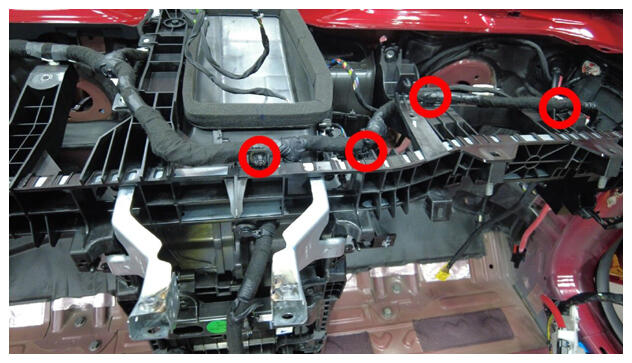

  19. Install the instrument panel harness clips (x8) to the top of cross car beam.
    NOTE: Number of clips on newer vehicles may vary.
    G16589821Courtesy of TESLA, INC.
    G16589822Courtesy of TESLA, INC.
    G16589823Courtesy of TESLA, INC.

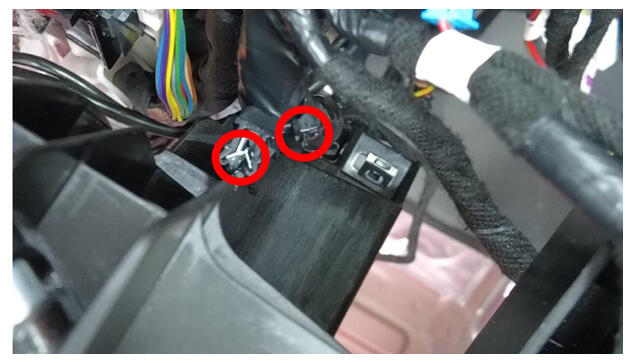

  20. Install the harness clips (x2) to the instrument panel near the LH controller.
    G16589824Courtesy of TESLA, INC.
  21. Install the instrument panel harness connector to the lower part of the cross car beam assembly.

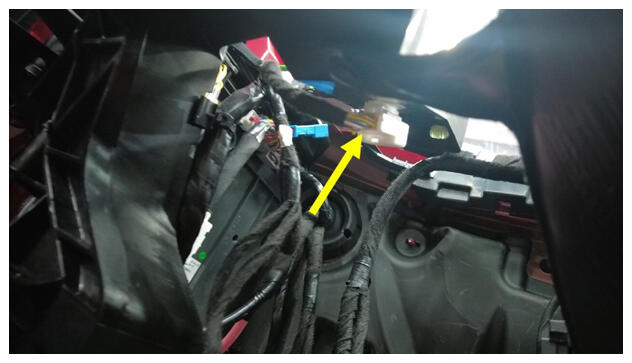

    G16589825Courtesy of TESLA, INC.

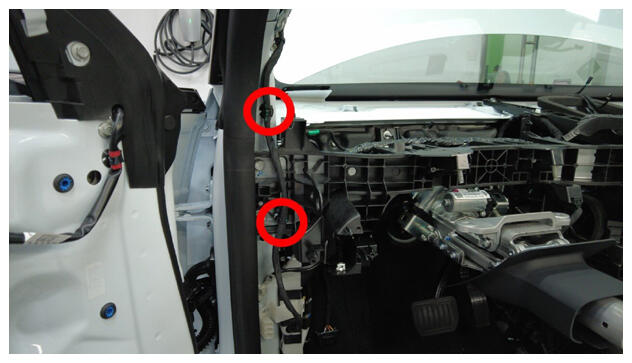

  22. Install the headliner harness clips (x2) on the LH lower A-pillar.
    G16589826Courtesy of TESLA, INC.

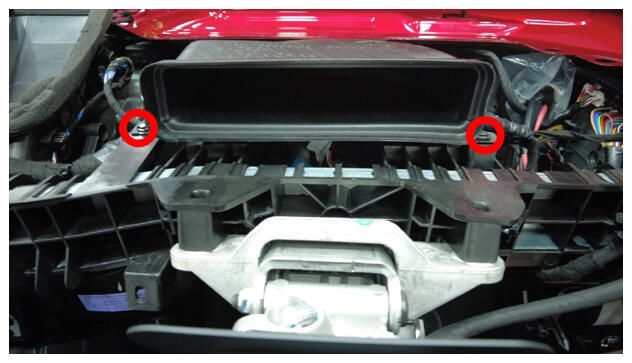

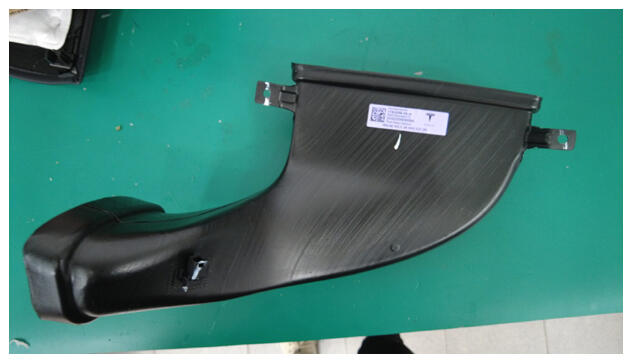

  23. Place the RH air wave duct to the proper position, and then install the push clips (x2) that attach the RH air wave duct to the instrument panel.
    G16589827Courtesy of TESLA, INC.
    G16589828Courtesy of TESLA, INC.
  24. Connect the thermistor connector to the RH instrument panel air wave duct.

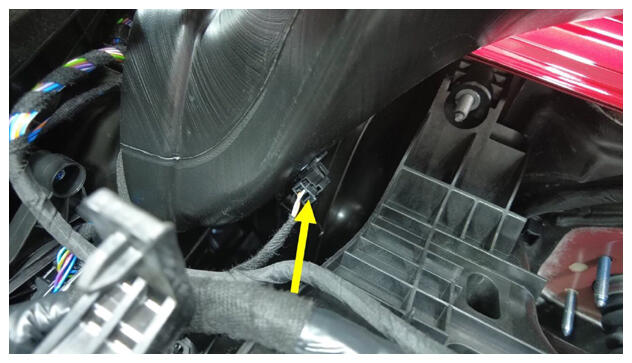

    G16589829Courtesy of TESLA, INC.

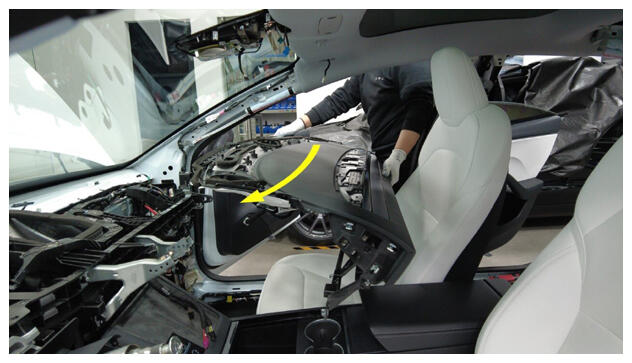

  25. With assistance, secure the guide tabs (x4) and tabs (x2) to install the instrument panel carrier to the vehicle.
    NOTE: Be careful not to press the speaker connector and the ambient light connector underneath the instrument panel.

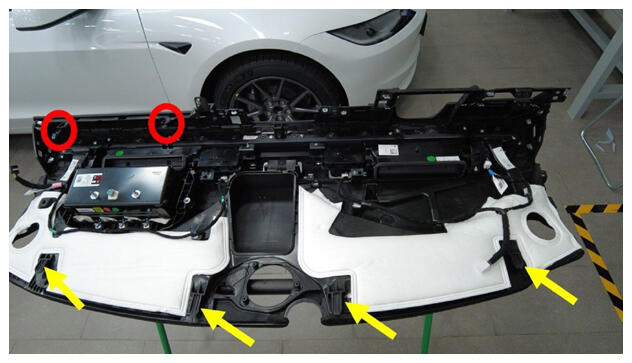

    G16589830Courtesy of TESLA, INC.
    G16589831Courtesy of TESLA, INC.

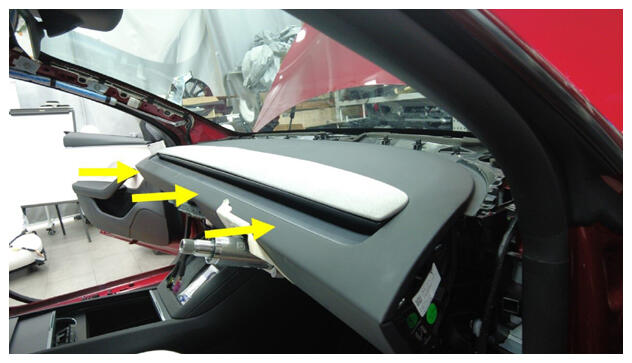

    G16589832Courtesy of TESLA, INC.

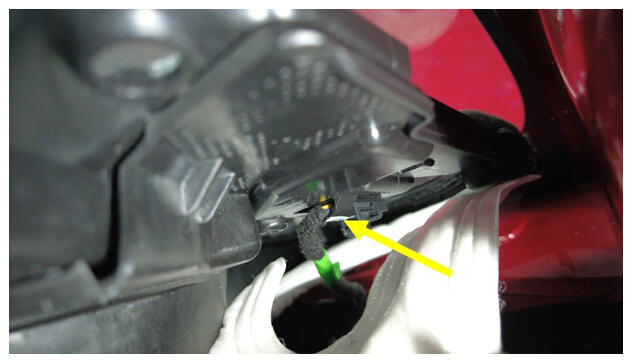

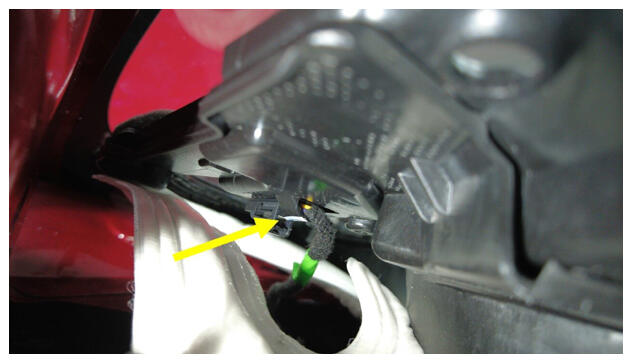

  26. Install the LH and RH instrument panel speaker harnesses to the instrument panel.
    NOTE: Gently pull out the instrument panel and lift it to facilitate installing the harnesses.
    G16589833Courtesy of TESLA, INC.
    G16589834Courtesy of TESLA, INC.
  27. Install the screws (x9) and the datums (x2) that attach the instrument panel carrier to the cross car beam.

    2.3 N.m (1.7 lbs-ft)

    NOTE: There is 1 screw and 1 datum on the upper LH side, 1 screw on the LH side, 3 screws at the lower center, 3 screws on the RH side, and 1 screw and 1 datum on the upper RH side.

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 2 in extension
    • Torx T20 socket
    • 4 in extension
    • Ratchet/torque wrench

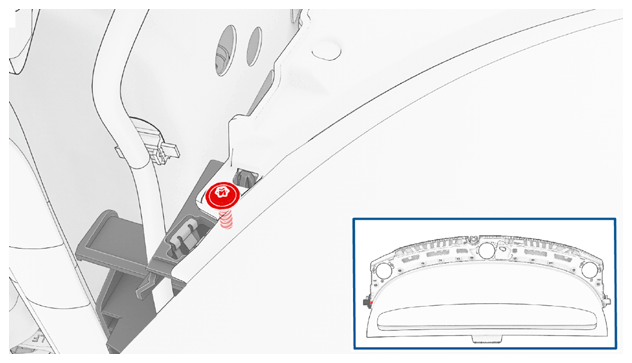

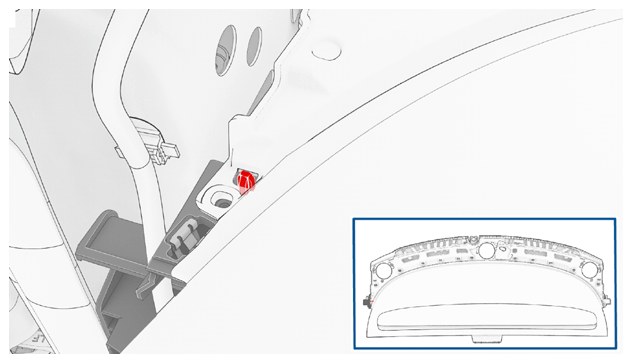

    NOTE: 1 screw and 1 datum on the upper LH side
    G16589835Courtesy of TESLA, INC.
    G16589836Courtesy of TESLA, INC.

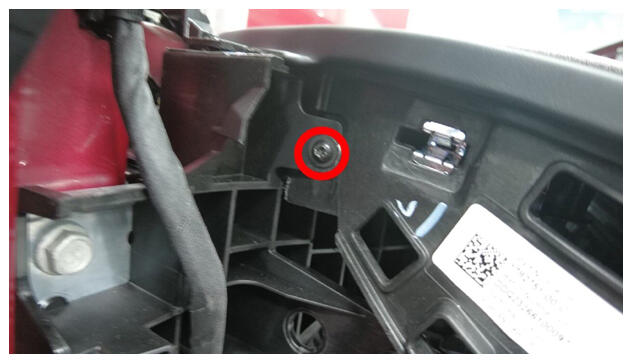

    NOTE: 1 screw on the LH side
    G16589837Courtesy of TESLA, INC.

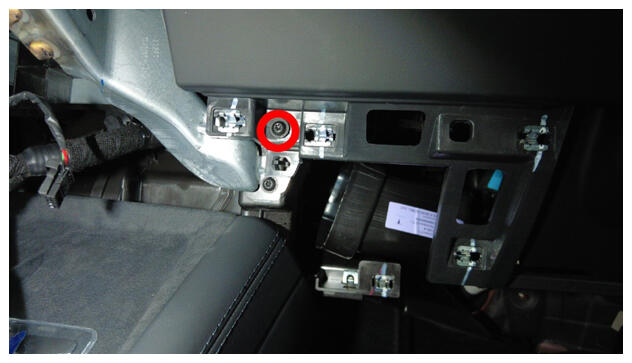

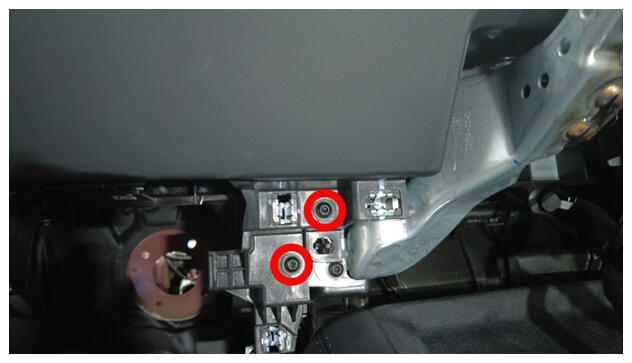

    NOTE: 3 screws at the lower center
    G16589838Courtesy of TESLA, INC.
    G16589839Courtesy of TESLA, INC.

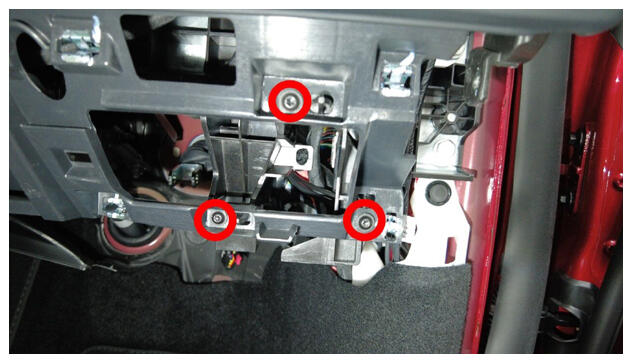

    NOTE: 3 screws on the RH side
    G16589840Courtesy of TESLA, INC.

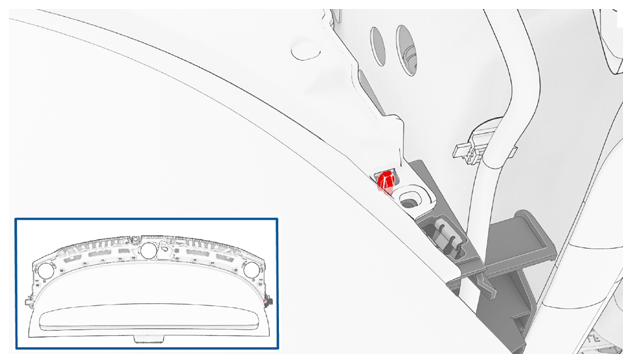

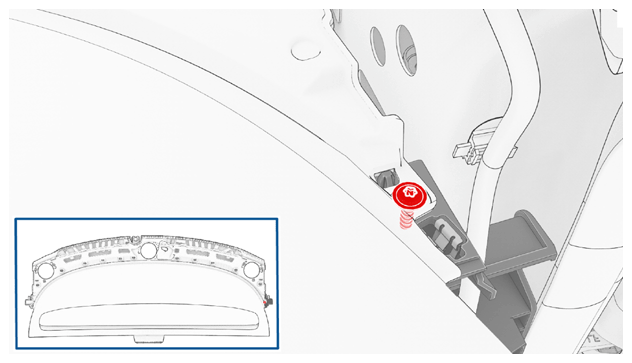

    NOTE: 1 screw and 1 datum on the upper RH side
    G16589841Courtesy of TESLA, INC.
    G16589842Courtesy of TESLA, INC.

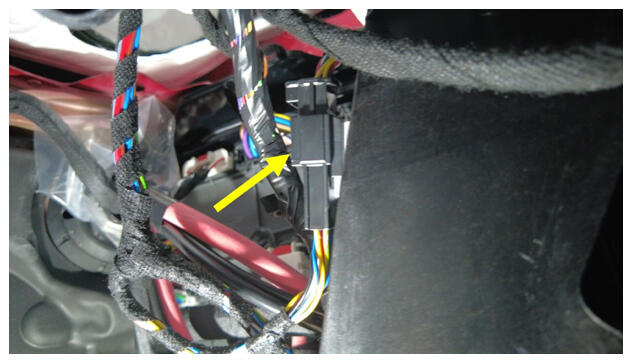

  28. Connect the instrument panel harness connectors (x2) to the instrument panel LH and RH side.

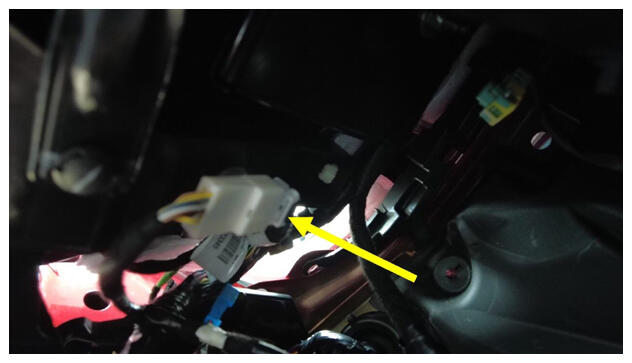

    NOTE: LH Side
    G16589843Courtesy of TESLA, INC.
    NOTE: RH Side
    G16589844Courtesy of TESLA, INC.

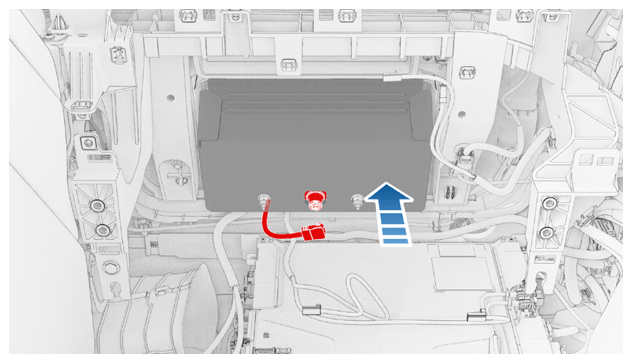

  29. Connect the passenger airbag connector.
    NOTE: When the connector is fully seated, you will hear the click sound of the secondary locking pin returning.
    G16589845Courtesy of TESLA, INC.

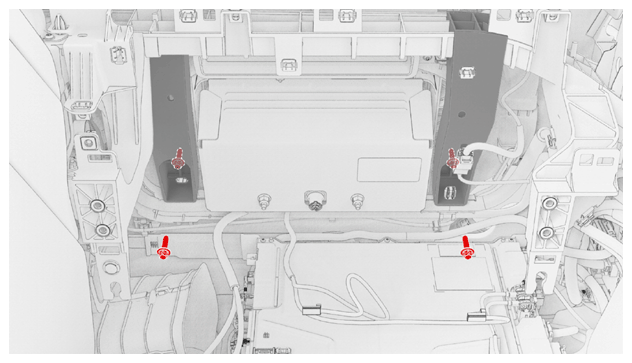

  30. Install new patch bolts (x2) (1112138-00-C) that secure the instrument panel carrier to the cross car beam near the passenger airbag.

    8 N.m (5.9 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 6 in extension
    • 1/4 in to 3/8 in adapter
    • External Torx E10
    • Ratchet/torque wrench
    G16589846Courtesy of TESLA, INC.
  31. Install the center instrument panel speaker. See INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - AUDIO SPEAKER FULL RANGE 100 MM, CENTER - REMOVE AND REPLACE .
  32. Install the LH and RH instrument panel speakers. See INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - AUDIO SPEAKER FULL RANGE, LH - REMOVE AND REPLACE .
  33. Install the instrument panel speaker grille. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - IP WRAPPED AROUND ASSEMBLY - REMOVE AND REPLACE .
  34. Install the touchscreen. See TOUCHSCREEN - CENTER DISPLAY ASSEMBLY - REMOVE AND REPLACE .
  35. Install the steering column control module (SCCM). See STEERING COLUMN AND WHEEL - STEERING COLUMN CONTROL MODULE KOSTAL - REMOVE AND REPLACE .
  36. Install the lower shroud from the steering column. See DASH PANEL - SHROUD, LOWER - REMOVE AND REPLACE .
  37. Install the steering wheel. See STEERING COLUMN AND WHEEL - STEERING WHEEL - PUR LEATHER - REMOVE AND REPLACE .
    NOTE: Mark the steering wheel to steering column before removing the steering wheel.
  38. Install the driver airbag assembly. See FRONT AIR BAGS - DRIVER AIRBAG ASSEMBLY - REMOVE AND REPLACE .
  39. Install the center console assembly. See CENTER CONSOLE - CENTER CONSOLE, ASSEMBLY - REMOVE AND REPLACE .
  40. Install the LH instrument panel air duct. See RHD INSTRUMENT PANEL - INSTRUMENT PANEL - INTERIOR DUCTING AND VENTS - AIR WAVE DUCT - PASSENGER (RR) - REMOVE AND REPLACE .
  41. Install the passenger footwell duct. See RHD INSTRUMENT PANEL - INSTRUMENT PANEL - INTERIOR DUCTING AND VENTS - PASSENGER FOOTWELL DUCT ASSEMBLY (RR) - REMOVE AND REPLACE .
  42. Install the glove box. See RHD INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - GLOVEBOX ASSEMBLY (RR) - REMOVE AND REPLACE .
  43. Install the LH and RH upper A-pillar trims. See A - B - C POST INTERIOR TRIM - A - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
  44. Install the passenger footwell cover. See RHD INSTRUMENT PANEL - INSTRUMENT PANEL - DASH SUPPORT FRAME - PASSENGER FOOTWELL ASSEMBLY (RR) - REMOVE AND REPLACE .
  45. Install the instrument panel lower assembly. See DASH PANEL - IP LOWER, ASSEMBLY - REMOVE AND REPLACE .
  46. Install the LH and RH instrument panel end caps. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
  47. Install the driver footwell cover. See RHD INSTRUMENT PANEL - INSTRUMENT PANEL - DASH SUPPORT FRAME - DRIVER FOOTWELL ASSEMBLY - REMOVE AND REPLACE .
  48. Install the wiper module. See RHD ELECTRICAL - WIPERS AND WASHER - WINDSHIELD WIPERS AND MOTOR - WIPER MODULE - REMOVE AND REPLACE .
  49. Connect the LV battery power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
  50. Install the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
  51. Move the LH and RH front seats to original position.
  52. Raise both front windows and close both front doors.
