Interior Ducting and Vents - IP, SWD, Defrost, Duct, LH, Assembly - Remove And Replace: Remove
- Remove the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .

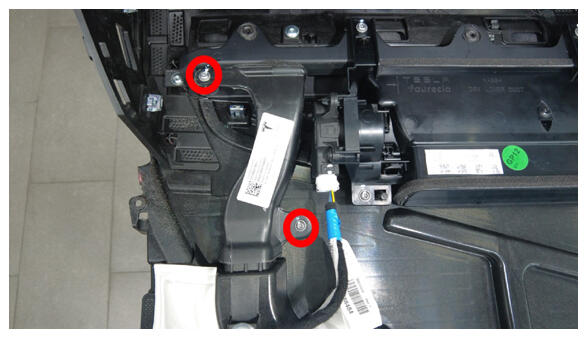

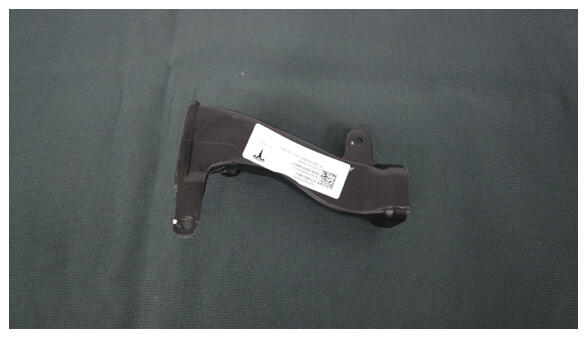

- Remove the screws (x2) that attach the LH air wave duct to the IP carrier, and then remove the duct from the IP carrier.
