Interior Ducting and Vents - IP, SWD, Defrost, Duct, LH, Assembly - Remove And Replace: Install

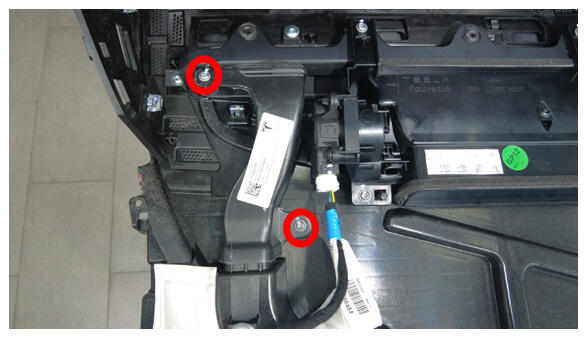

  1. Install the LH air wave duct to the IP carrier, and then install the screws (x2) that attach the duct to the IP carrier.

    2.3 N.m (1.7 lbs-ft)

    G16589579Courtesy of TESLA, INC.
  2. Install the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .
