Interior Ducting and Vents - IP, Air, Vent, Driver, Assembly - Remove And Replace: Notes

Last modified: 08/07/2024 05:04:52

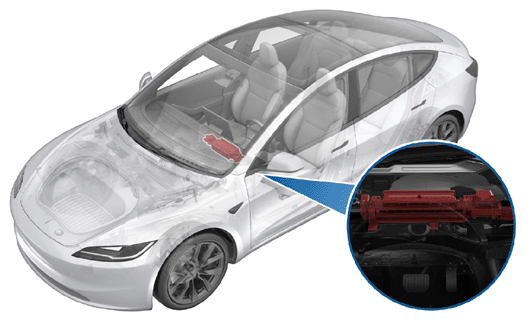

Fig 1: Driver Air Vent Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - INTERIOR DUCTING AND VENTS - IP, AIR, VENT, DRIVER, ASSEMBLY (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the LH front vent to the instrument panel carrier	2.3 N.m (1.7 lbs-ft)	Cordless Ratchet/Impact Driver 6 in extension Torx T20 socket Ratchet/torque wrench	Reuse
