Interior Ducting and Vents - IP, Air, Vent, Driver, Assembly - Remove And Replace: Install

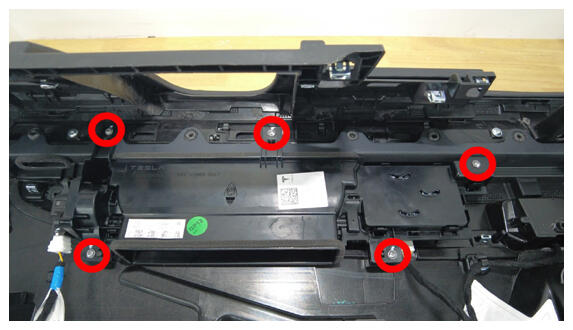

Install the LH front vent to the instrument panel, and then install the screws (x5) that attach the LH front vent to the instrument panel.
2.3 N.m (1.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 6 in extension
- Torx T20 socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

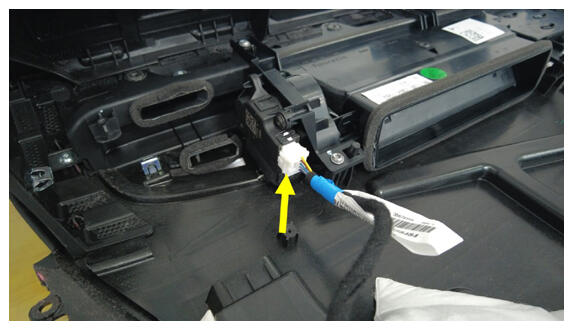

Connect the LH front vent horizontal adjustment actuator connector.

Courtesy of TESLA, INC.

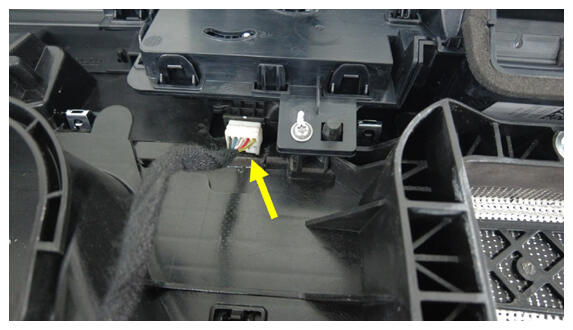

Connect the LH front vent height adjustment actuator connector.

Courtesy of TESLA, INC.
Install the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .
