Interior Ducting And Vents - IP, Driver, Footwell, Duct - Remove And Replace: Remove

  1. Remove the LH footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
  2. Release the clips (x2) that attach the LH footwell duct to the HVAC module.

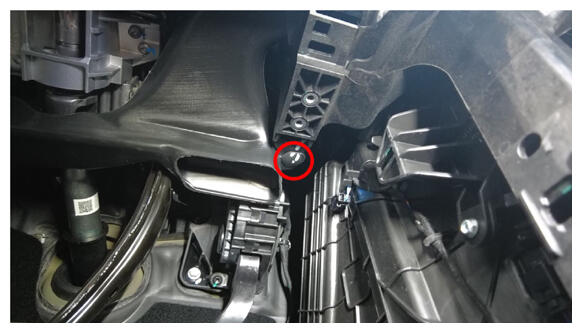

    G16589565Courtesy of TESLA, INC.

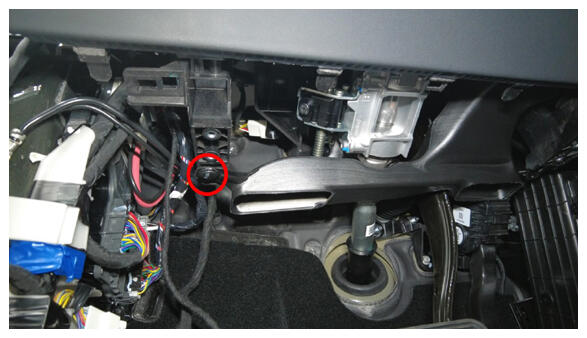

    G16589566Courtesy of TESLA, INC.
  3. Remove the LH footwell duct.

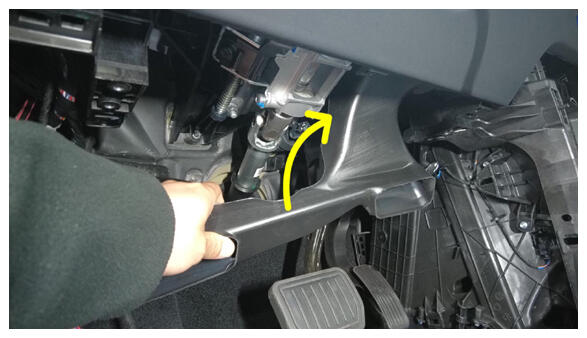

    G16589567Courtesy of TESLA, INC.

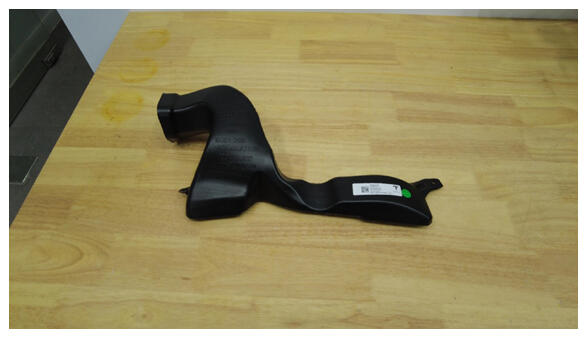

    G16589568Courtesy of TESLA, INC.
