Interior Ducting And Vents - IP, Driver, Footwell, Duct - Remove And Replace: Install

  1. Install the LH footwell duct.

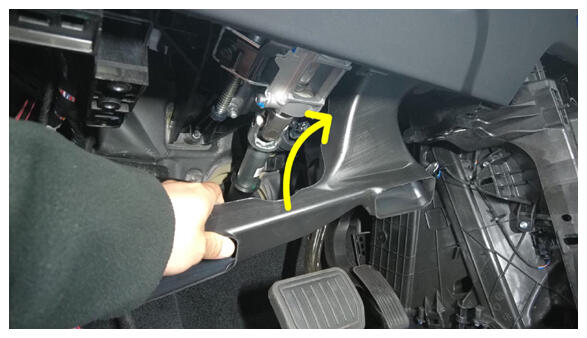

    G16589569Courtesy of TESLA, INC.
  2. Install the clips (x2) that attach the LH footwell duct to the HVAC module.

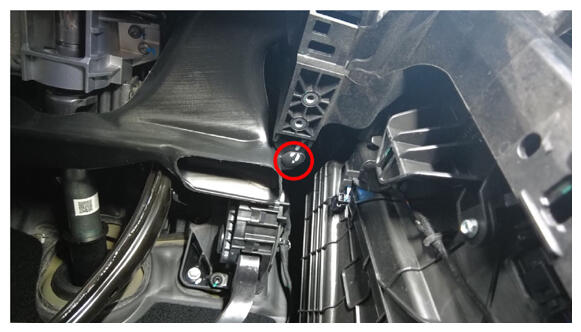

    G16589570Courtesy of TESLA, INC.

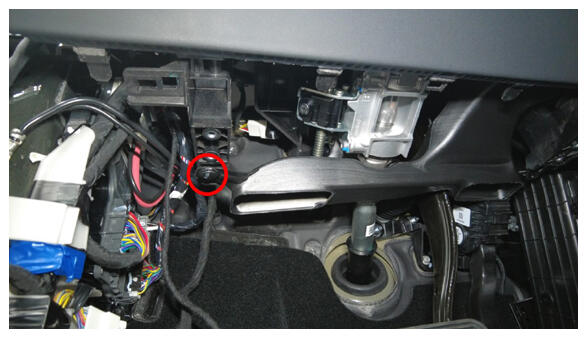

    G16589571Courtesy of TESLA, INC.
  3. Install the LH footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
