Interior Ducting And Vents - IP, Air, Wave, Duct, LH - Remove And Replace: Remove
- Remove the LH upper thermistor duct. See INTERIOR DUCTING AND VENTS - HVAC, THERMISTOR DUCT - REMOVE AND REPLACE .

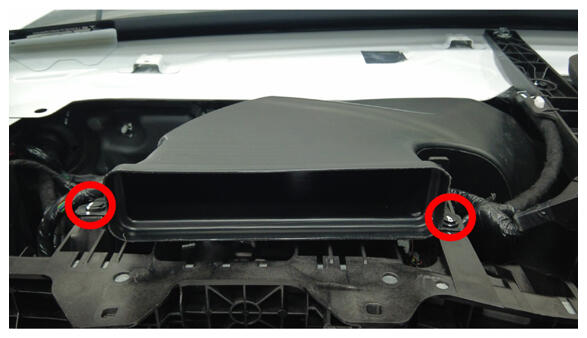

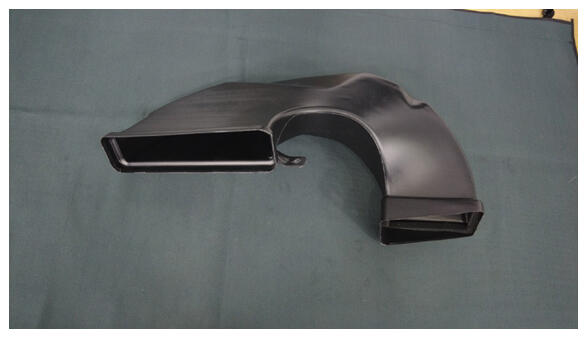

- Remove the push clips (x2) that attach the LH air wave duct to the cross bar beam, and then remove the duct from the HVAC assembly.
