Front Lights - Head Lamp Assembly ECE, LH - Remove And Replace: Remove

  1. Remove the front fascia assembly. See FRONT BUMPER FASCIA - FASCIA ASSEMBLY - FRONT - REMOVE AND REPLACE .
    NOTE: It is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.

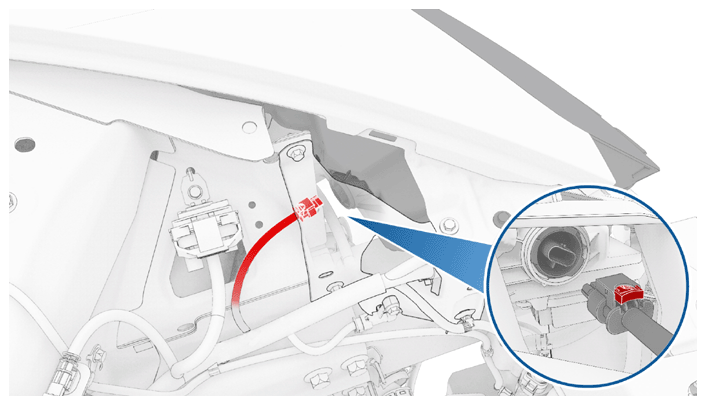

  2. Disconnect the electrical connector from the LH headlight.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    NOTE: Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G16596324Courtesy of TESLA, INC.

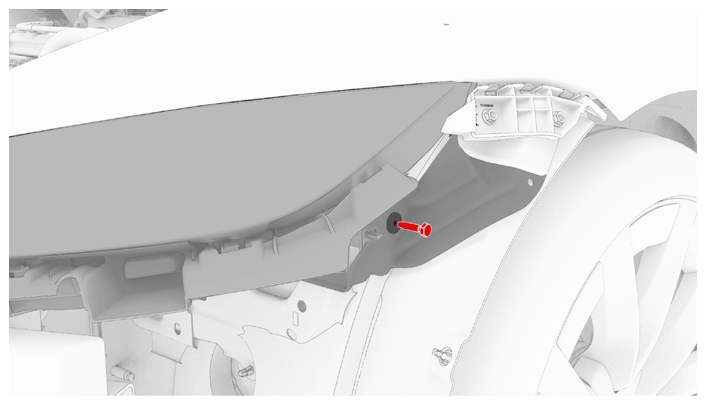

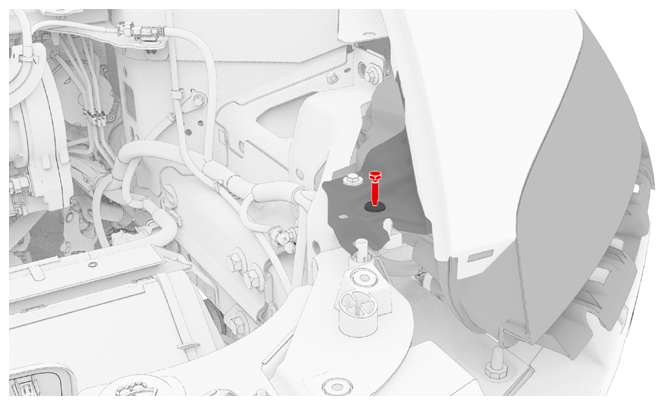

  3. Remove the bolts (x2) that attach the LH headlight to the body.

    Tip: Use of the following tool(s) is recommended:

    • Cordless hex driver
    • 10 mm magnetic deep
    • 6 in nutsetter
    G16596325Courtesy of TESLA, INC.
    G16596326Courtesy of TESLA, INC.

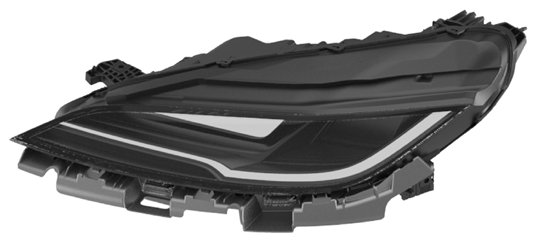

  4. Remove the LH headlight from the vehicle.
    G16596327Courtesy of TESLA, INC.
