Electrical - Wipers and Washer - Windshield Wipers and Motor - Wiper Module - Remove And Replace: Install

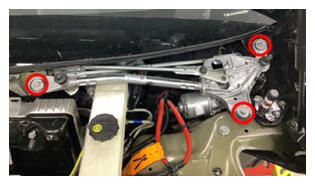

Install the bolts (x3) that attach the wiper module to the body.
7 N.m (5.2 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 2 in extension
- Cordless Ratchet/Impact Driver
- 10 mm socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

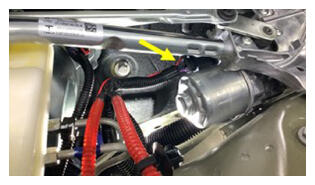

Connect the wiper module connector.
NOTE: Do not place the limbs within the linkage movement area as the wiper arms will automatically transition to parking mode.

Courtesy of TESLA, INC.
Install the cowl screen panel. See UNDERHOOD TRIM - ASSEMBLY, COWL SCREEN, LHD - REMOVE AND REPLACE .
Install the wiper arms. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WIPERS AND MOTOR - WIPER ARM DR - REMOVE AND REPLACE .
Install the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
Raise the LH front window and close the LH front door.
