Electrical - Liftgate Camera - AP4 Back Up Camera, Liftgate Handle - Remove And Replace: Remove

  1. Remove the trunk lid trim. See TRUNK INTERIOR - LOWER LIFTGATE, ASSEMBLY - REMOVE AND REPLACE .
  2. Remove the trunk exterior release switch. See TRUNK HANDLE AND EMERGENCY RELEASE - LIFTGATE HANDLE ASSEMBLY - REMOVE AND REPLACE .

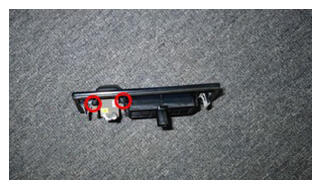

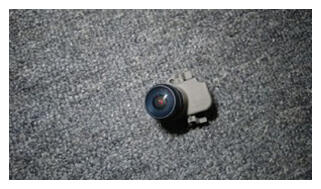

  3. Use a phillips screwdriver to remove the screws (x2) that attach the rear facing camera to the trunk exterior release switch, then remove the camera.
    G16596290Courtesy of TESLA, INC.
    G16596291Courtesy of TESLA, INC.
