Dash Panel - IP Lower, Assembly - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.

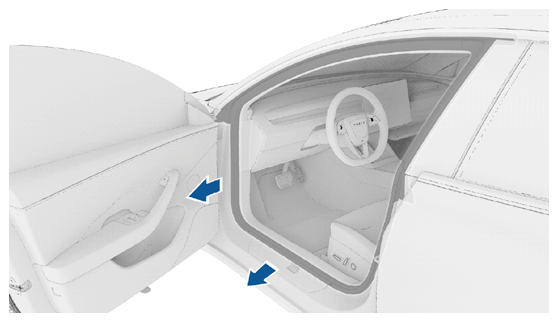

- Partially release the LH front primary door seal.
- Remove the instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
- Remove the LH footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE

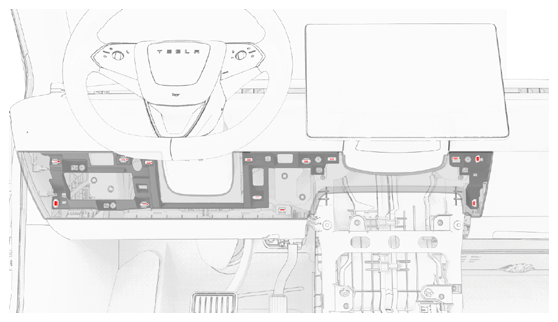

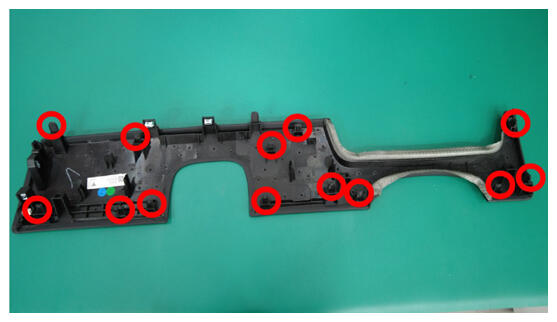

- Remove the screw and use the plastic trim tool to release the tabs (x13) that attach the lower instrument panel to the instrument panel, and then remove the panel from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- Torx T20 socket
