Infotainment - Touchscreen - Instrument Panel - Service Panel - Remove And Replace: Remove
- Open the RH front door, and lower the RH front window.

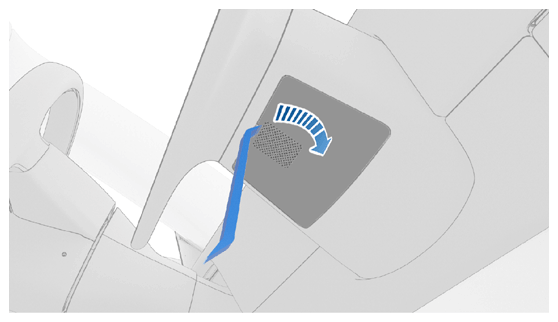

- Insert a plastic trim tool into the top center slot of the service panel, and then release the clips (x2) and tabs (x4) that attach the service panel to the instrument panel.CAUTION: An electrical harness is still connected to the service panel. Do not pull the service panel too far from the instrument panel.

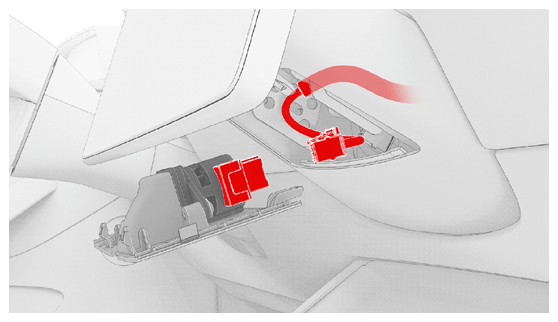

- Disconnect the electrical harness from the cabin temperature sensor.
- Remove the service panel from the touchscreen.

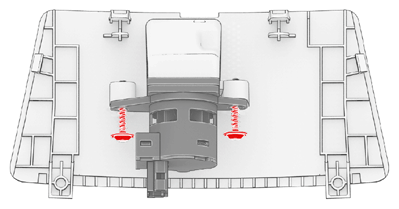

- Remove the bolts (x2) that attach the cabin temperature sensor to the service panel, and then remove the service panel from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T20 socket
- Ratchet/torque wrench
