Supermanifold - Coolant Bottle Cap - Remove And Replace: Remove

  1. Open the LH front door and raise the LH front window.
  2. Open the hood.
  3. Open the washer bottle cap.

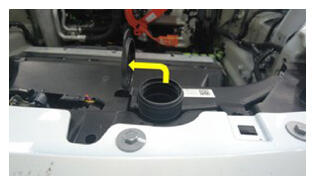

    G16596418Courtesy of TESLA, INC.
  4. Use a plastic trim tool to remove the cap from the windshield washer reservoir.
    NOTE: The cap and the retaining collar are a single piece. Use soft towels for protection.

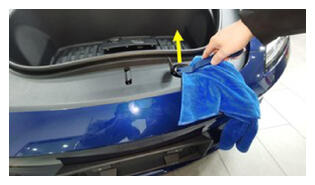

    G16596419Courtesy of TESLA, INC.

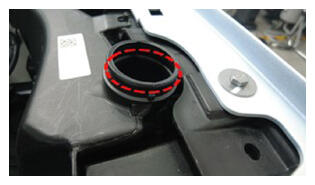

    G16596420Courtesy of TESLA, INC.

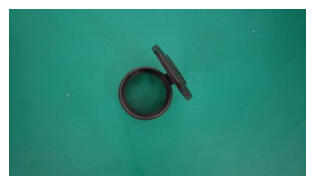

    G16596421Courtesy of TESLA, INC.
