Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Connection Hose Assembly - Remove And Replace: Install

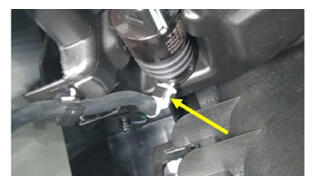

  1. Connect the washer hose to the washer pump.
    G16596452Courtesy of TESLA, INC.
  2. Remove the absorbent material from below the washer pump hose.

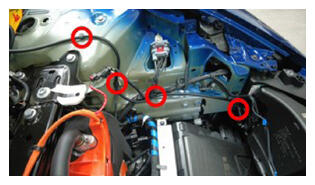

  3. Install the clips (x4) that attach the washer hose to body and washer bottle.
    G16596453Courtesy of TESLA, INC.

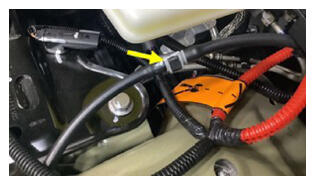

  4. Connect the main washer hose.
    G16596454Courtesy of TESLA, INC.
  5. Install the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
  6. Fill the windshield washer reservoir with fluid.
  7. Close the washer reservoir cap.
  8. Verify operation of the windshield wipers and washer.
