Sensor - Parking Distance - Inner - Rear - Remove And Replace: Install

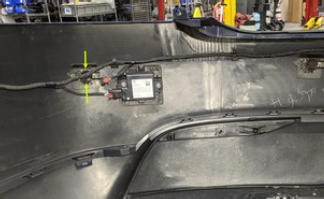

  1. Install the rear inner parking distance sensor into the rear fascia.
    NOTE: Verify the sensor is seated flush to rear fascia.
    G15437847Courtesy of TESLA, INC.
  2. Connect the rear inner parking distance sensor, and then engage the locking tab.
    G15437848Courtesy of TESLA, INC.
  3. Install the rear fascia assembly onto the vehicle. See Fascia Assembly - Rear (Remove and Install) .
  4. Connect LV power. See LV POWER (DISCONNECT AND CONNECT) .
    NOTE: After connecting LV power, do not shift the vehicle to Drive until the Toolbox routine (further below) is performed. Failure to do so can trigger vehicle alerts.
  5. On the vehicle touchscreen, touch Controls > Service > Jack Mode  to deactivate Jack Mode.
  6. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect) .
  7. In Toolbox, click the Actions  tab, type "TEST-RESET_PARK" into the search field, click TEST-RESET_PARK  , click Run  , and then allow the routine to complete.
  8. In Toolbox, click the Actions  tab, type "USS Addresses" into the search field, click PROC_USM_REAR_PROGRAM-USS-ADDRESSES  , click Run  , and then allow the routine to complete.
  9. Disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 (Connect and Disconnect) .
  10. Raise the front windows and close the LH front door.
