Horn - Low Tone - Remove and Replace: Remove
WARNING:
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
- Open the LH front door.
- Lower the LH front window.
- Remove the LH front wheel. See WHEEL - REMOVE AND INSTALL

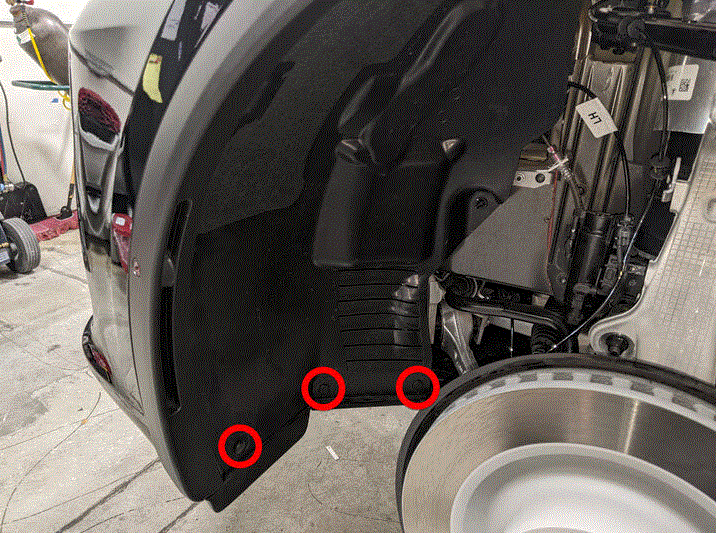

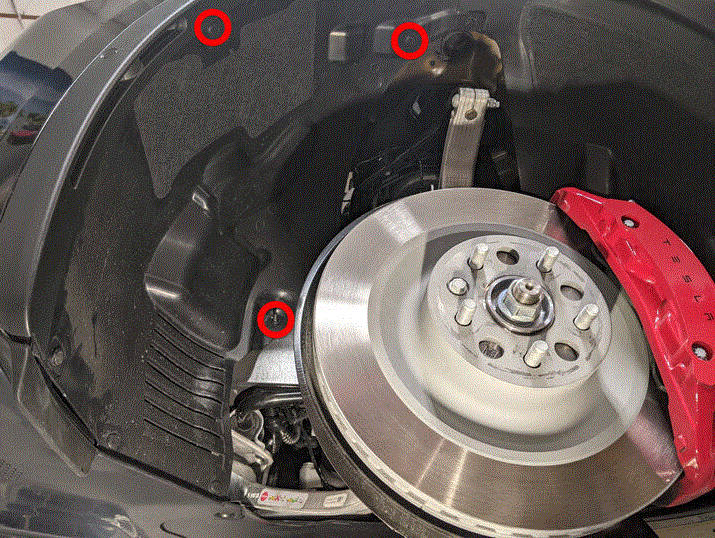

- Release the clips (x6) and push nut that partially attach the front portion of the LH front wheel house liner to the vehicle body, and then move the liner aside for access.
Tip:
Use of the following tool(s) is recommended:

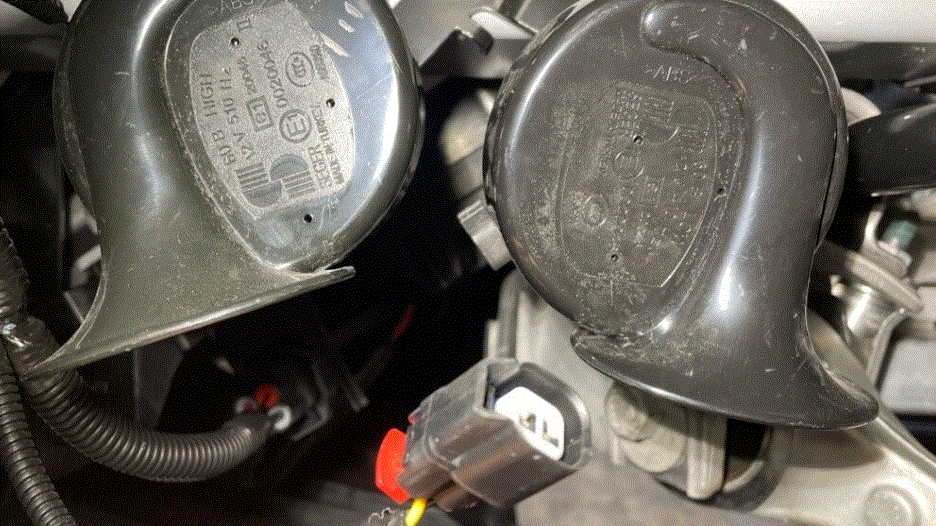

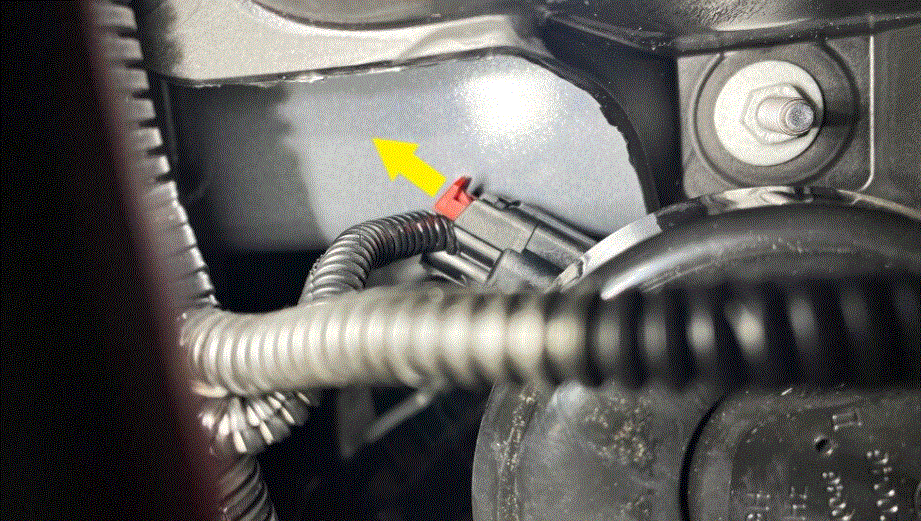

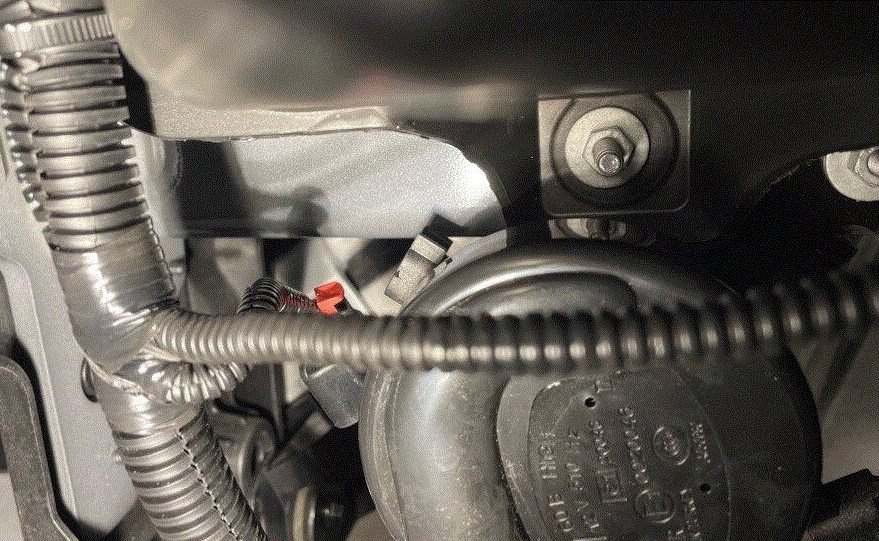

- Disconnect the low tone horn locking connector.
Tip:
Use of the following tool(s) is recommended:

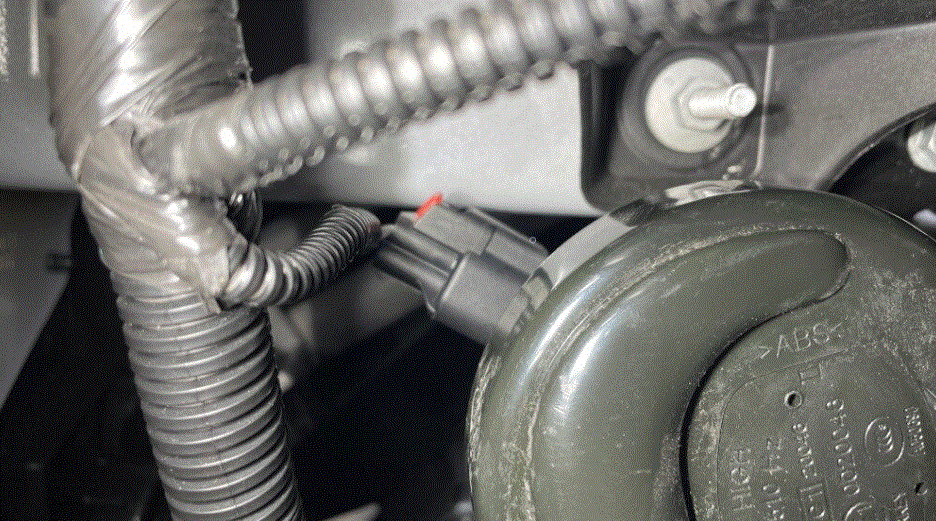

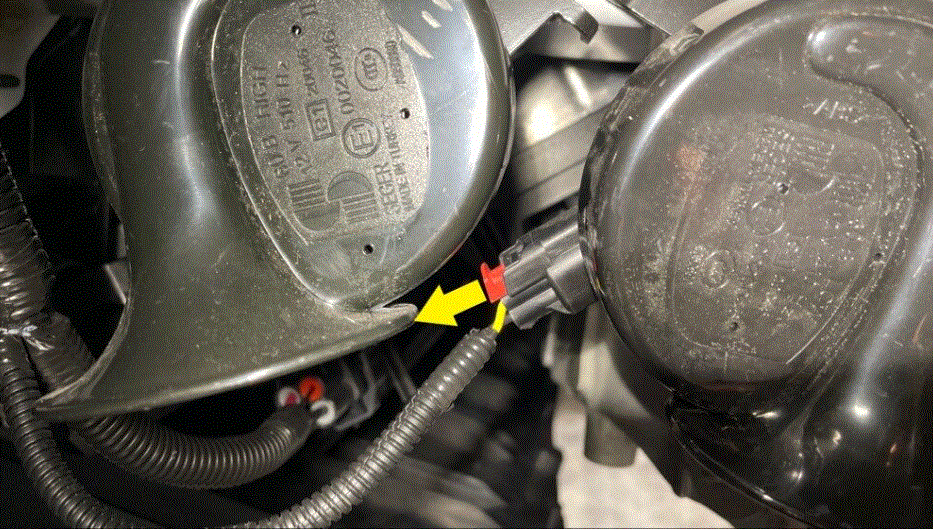

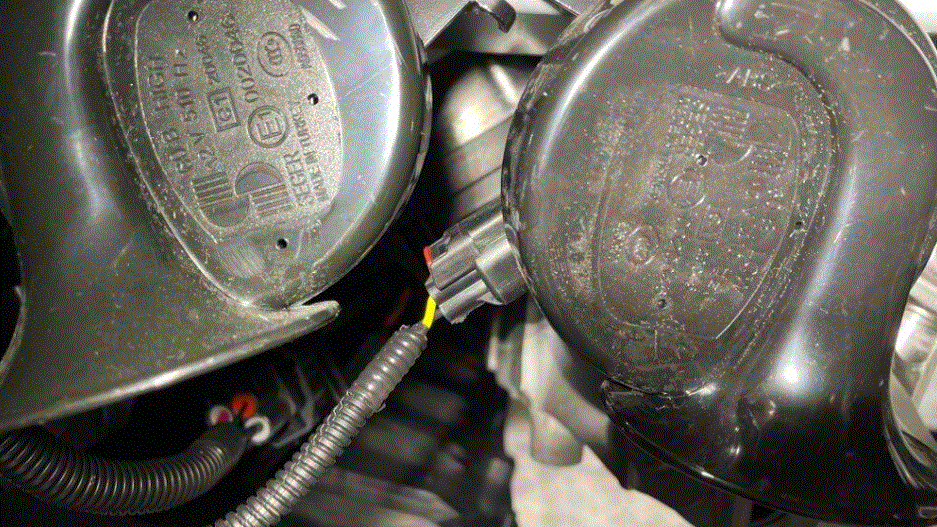

- Disconnect the high tone horn locking connector.
Tip:
Use of the following tool(s) is recommended:

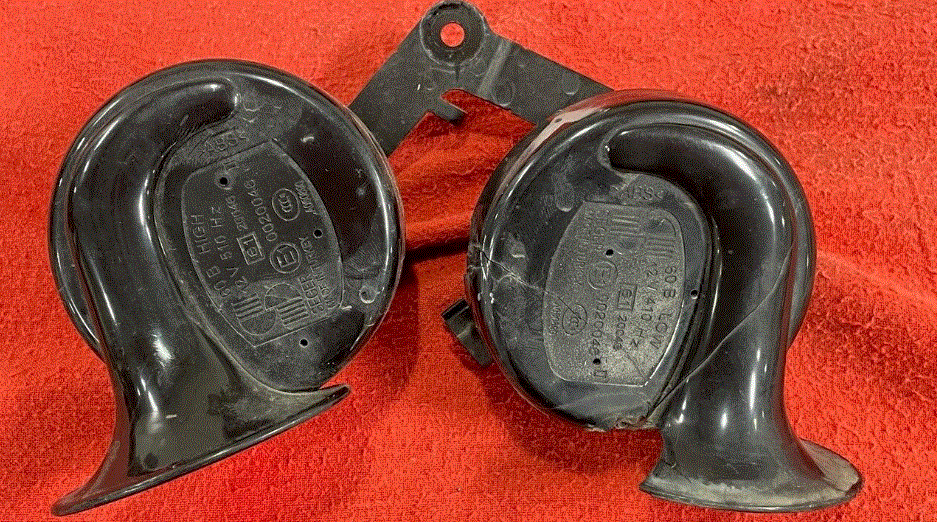

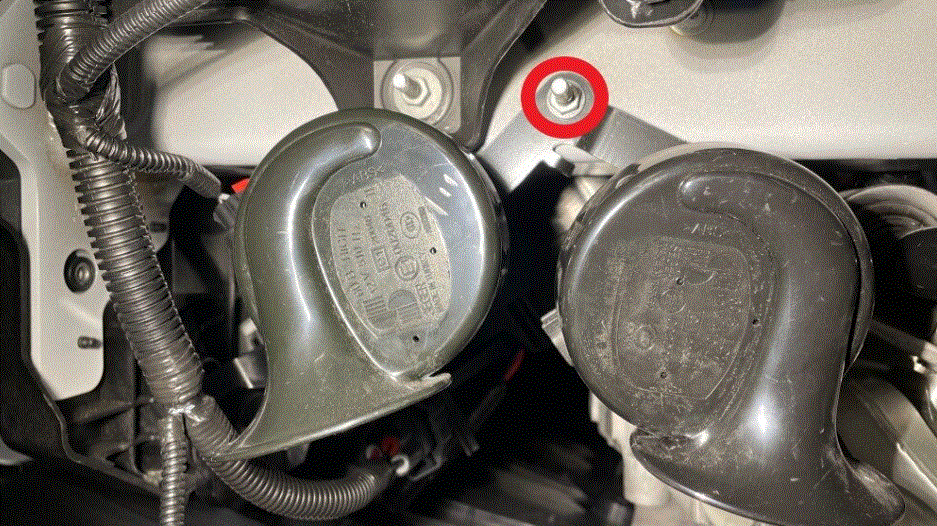

- Remove the nut that attaches the horn assembly to the vehicle body, and then remove the horn assembly from the vehicle.
Tip:
Use of the following tool(s) is recommended:
- 2 in extension
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench

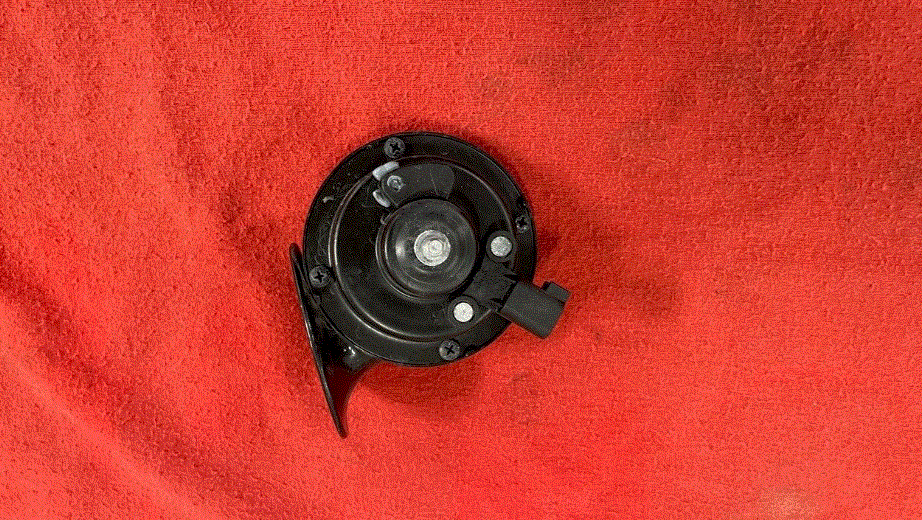

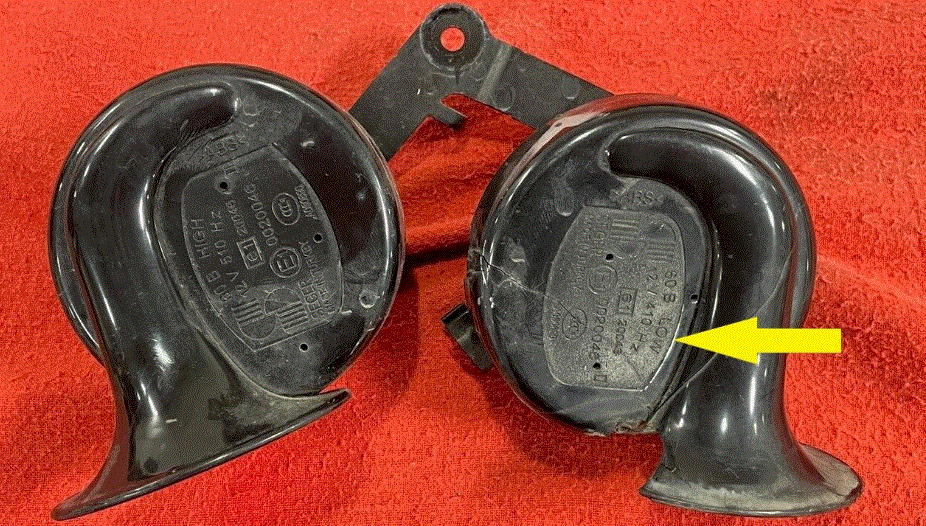

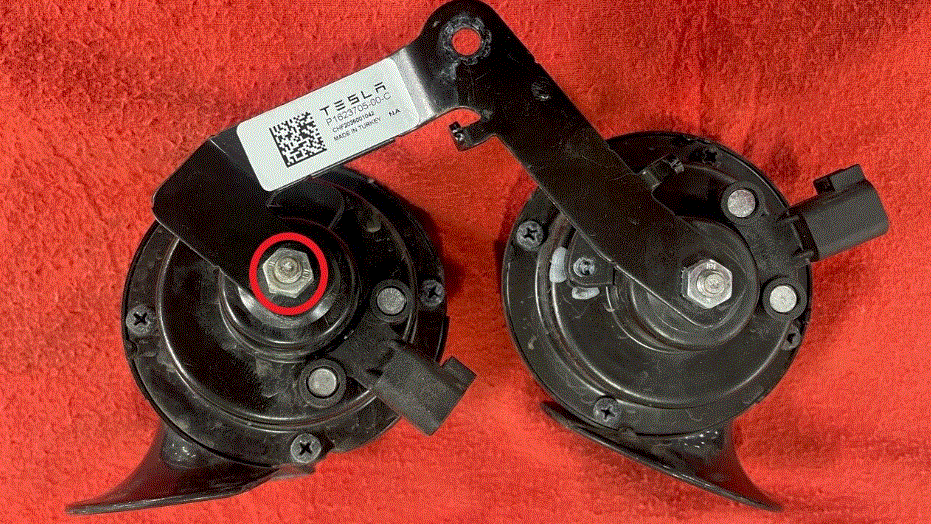

- Remove the nut that attaches the high tone horn to the horn assembly bracket, and then remove the high tone horn from the bracket.
Tip:
Use of the following tool(s) is recommended:
- 10 mm socket
- Adapter 1/4 in Dr. to 1/4 in Hex Bit Quick Change
- Cordless 1/4 in Hex Driver
