Cover - Outer - Podium - Driver - Remove And Replace: Remove

  1. Open the LH front door and lower the front windows.
  2. Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .

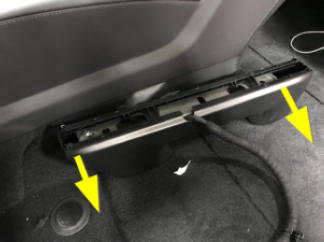

  3. Release the clips (x2) that attach the driver podium outer cover to the seat assembly, and then remove the cover from the vehicle.
    G15401385Courtesy of TESLA, INC.
    G15401386Courtesy of TESLA, INC.
