Mud Flaps - Retrofit: Retrofit

  1. Turn the steering wheel fully to the left.

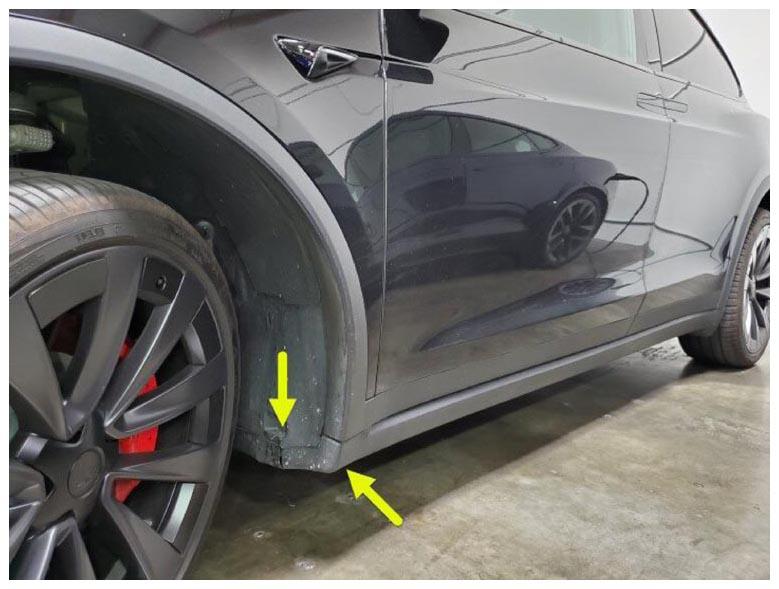

  2. Remove the clips (x2) that attach the LH front wheel liner and rocker cover.
    G15394004Courtesy of TESLA, INC.

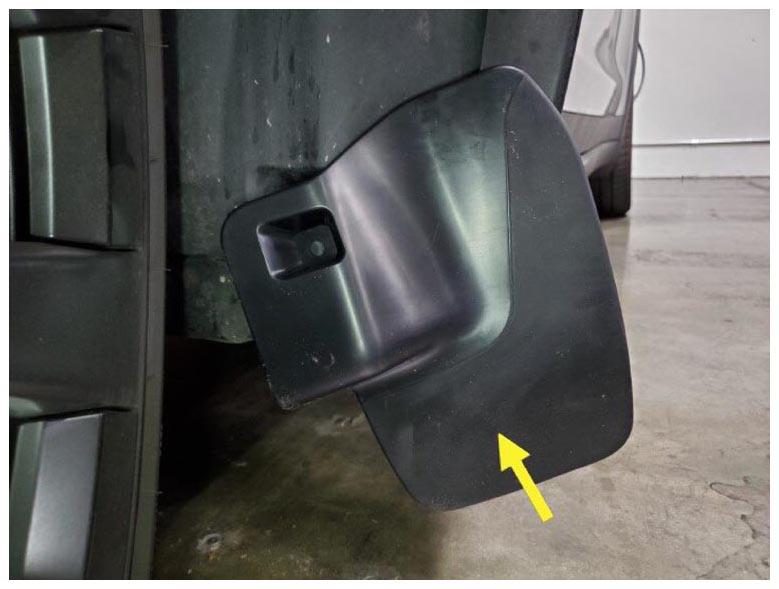

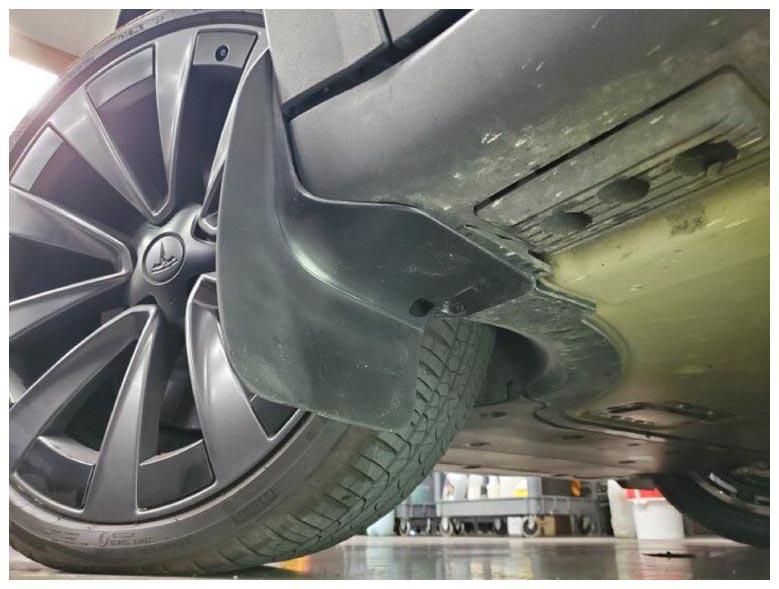

  3. Position the LH front mudflap onto the wheel liner and rocker cover

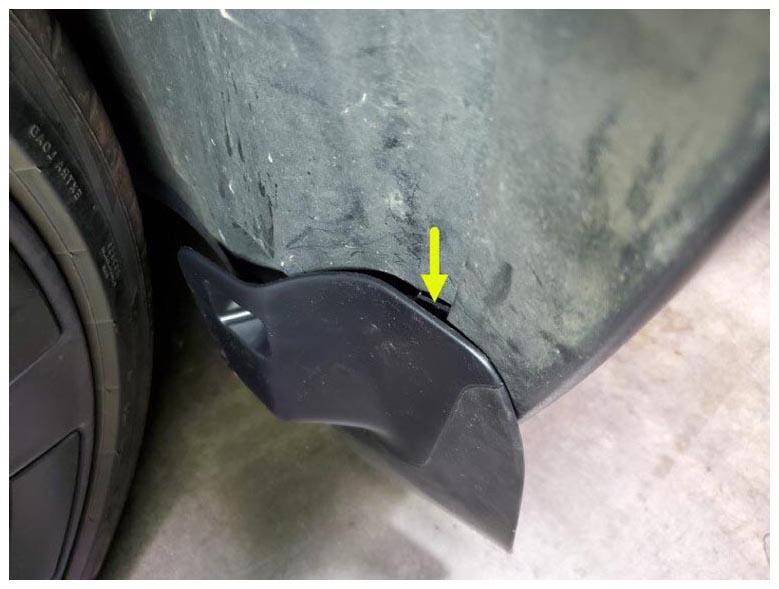

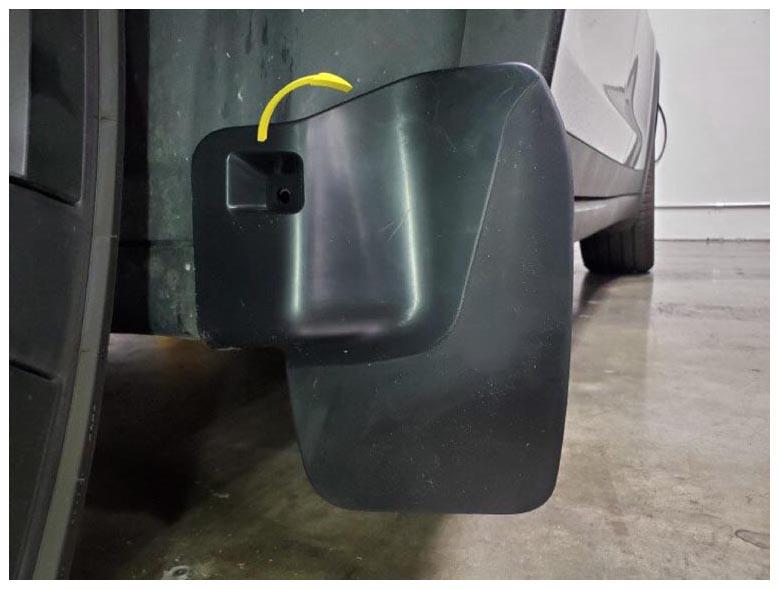

    NOTE: Position the mudflap at an angle to attach the tab behind the garnish, and then rotate the mud flap into position, Use a prytool to secure the tab.
    G15394005Courtesy of TESLA, INC.
    G15394006Courtesy of TESLA, INC.
    G15394007Courtesy of TESLA, INC.
    G15394008Courtesy of TESLA, INC.

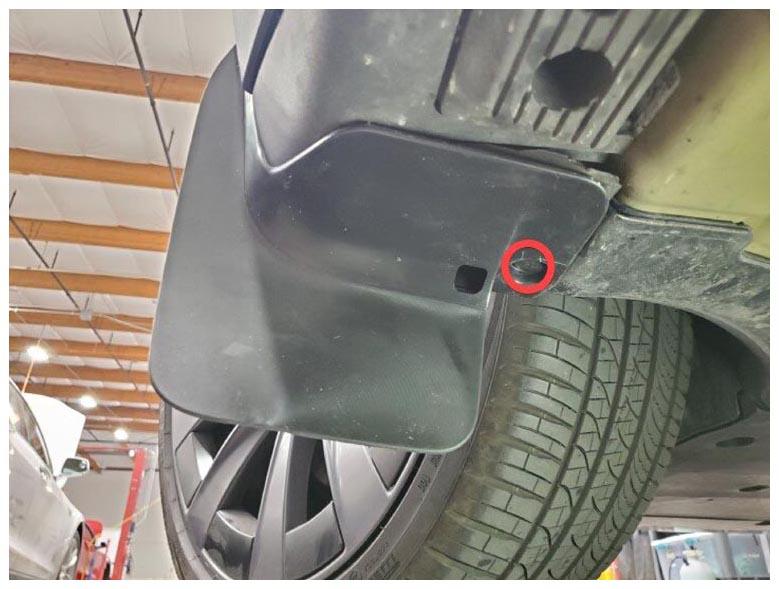

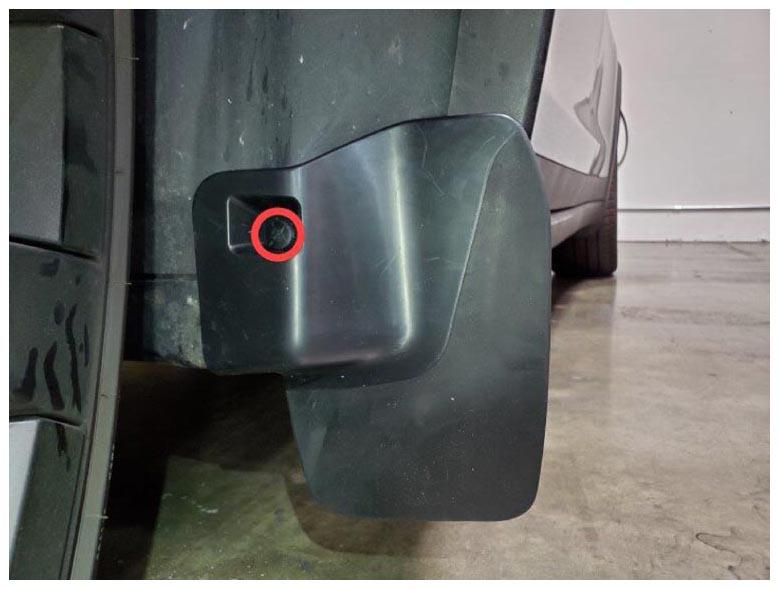

  4. Install the clips (x2) to attach the LH front mudflap to the wheel liner and rocker cover.
    G15394009Courtesy of TESLA, INC.
    G15394010Courtesy of TESLA, INC.
  5. Turn the steering wheel fully to the right, and then repeat steps  2 through  4 on the RH side of the vehicle.
