Headlight - LH - Remove And Replace: Remove

  1. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install) .

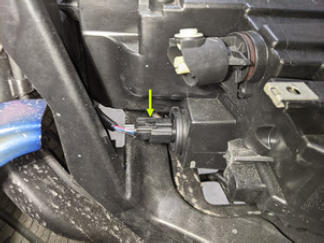

  2. Disconnect the LH headlight electrical connector.
    G15438044Courtesy of TESLA, INC.

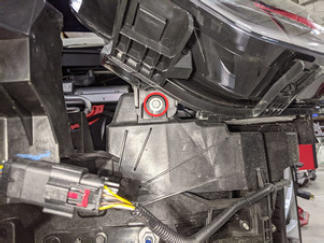

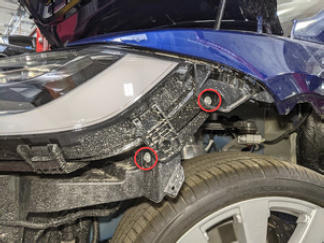

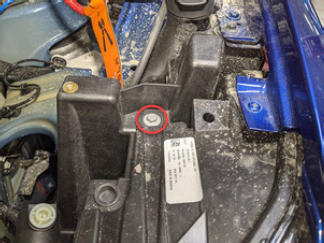

  3. Remove the bolts (x4) that attach the LH headlight to the vehicle.

    4.7 N.m (3.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15438045Courtesy of TESLA, INC.
    G15438046Courtesy of TESLA, INC.
    G15438047Courtesy of TESLA, INC.

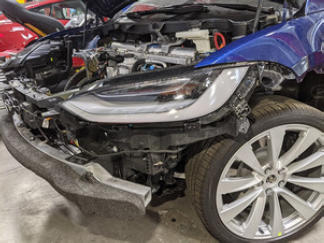

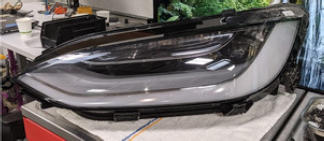

  4. Remove the LH headlight from the vehicle.
    G15438048Courtesy of TESLA, INC.
    G15438049Courtesy of TESLA, INC.
