Air Extractor - Rear - Inner - LH - Remove And Replace: Install

  1. Position the LH inner rear air extractor into the vehicle, insert the air extractor on the RH side of the trailer hitch, and then line the extractor up with the body.

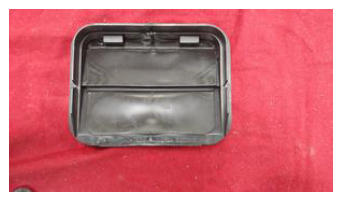

    G15388997Courtesy of TESLA, INC.
    G15388998Courtesy of TESLA, INC.
    G15388999Courtesy of TESLA, INC.
    G15389000Courtesy of TESLA, INC.
  2. Secure the clips (x4) that attach the LH inner rear air extractor to the vehicle.
    NOTE: Press firmly on the extractor and verify all points are properly installed.
    G15389001Courtesy of TESLA, INC.
    G15389002Courtesy of TESLA, INC.
  3. Install the trailer hitch cover. See COVER - TRAILER HITCH (REMOVE AND REPLACE) .
  4. Install the LH inner rear air extractor shroud. See SHROUD - AIR EXTRACTOR - REAR - INNER - LH (REMOVE AND REPLACE) .
  5. Position the rear wall load floor support into the vehicle, and then install the clips (x6) that attach the support to the vehicle.

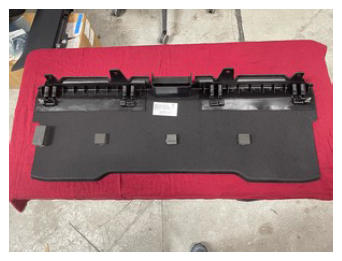

    G15389003Courtesy of TESLA, INC.
    G15389004Courtesy of TESLA, INC.

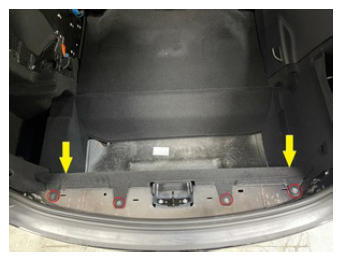

    G15389005Courtesy of TESLA, INC.
  6. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  7. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
