Wiper Blades - Pair - Remove And Replace: Install

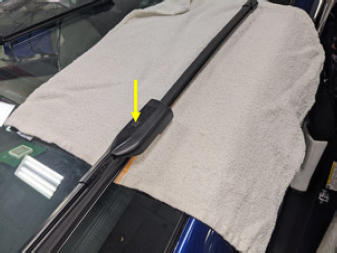

  1. Position the LH wiper blade onto the wiper arm, and then slide the wiper blade onto the wiper arm to secure the tab. Repeat this step for the RH wiper blade.
    G15438426Courtesy of TESLA, INC.
  2. Remove the shop towel from under the wiper arm.
  3. Remove the wipers from "Wiper Service Mode".
  4. Close the hood.
