USB Hub - Center Console - Rear - Remove And Replace: Install

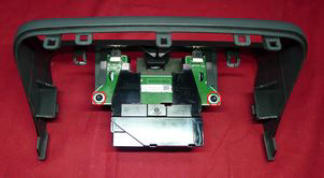

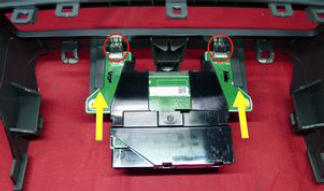

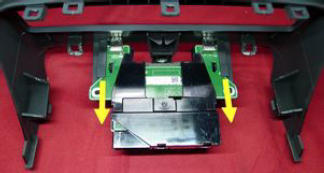

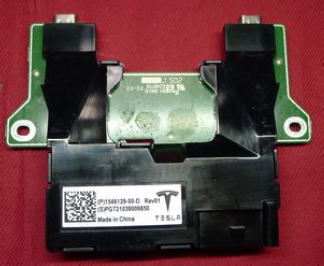

Position the rear center console USB hub into the hub assembly, and then install the screws (x2) that attach the hub to the assembly.
1 N.m (.7 ft-lbs)

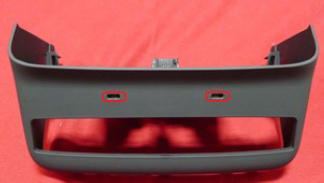

NOTE: Make sure the USB sockets are aligned with the openings in the center console panel before securing the assembly.

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the 2nd row cup holder. See Cup Holder - 2nd Row (Remove and Replace) .
