Tweeter - Liftgate - LH - Remove And Replace: Install

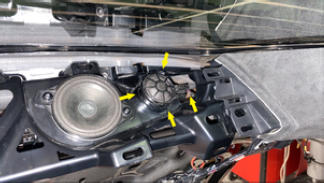

  1. Position the LH liftgate tweeter onto the liftgate, connect the electrical connector, and then secure the clips (x3) that attach the tweeter to the liftgate.
    G15409084Courtesy of TESLA, INC.
  2. Install the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace) .
  3. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  4. Close the liftgate.
  5. Raise the LH front window and close the LH front door.
