Bumper - Liftgate - LH - Remove And Replace: Install

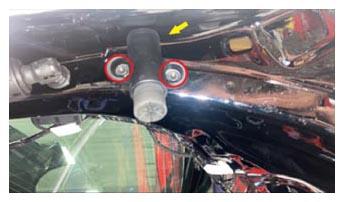

  1. Position the LH liftgate bumper onto the liftgate, and then install the bolts (x2) that attach the bumper to the liftgate.

    12 N.m (8.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    G15391041Courtesy of TESLA, INC.
  2. Close the liftgate.
  3. Raise the LH front window and close the LH front door.
