Camera - Rear Facing (HW4) - Remove and Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Enable Service Mode. See Service Mode (Enable and Disable) .
  3. Partially open the liftgate.
    NOTE: Allow the liftgate to open fully, and then pull the liftgate back to a comfortable working height.

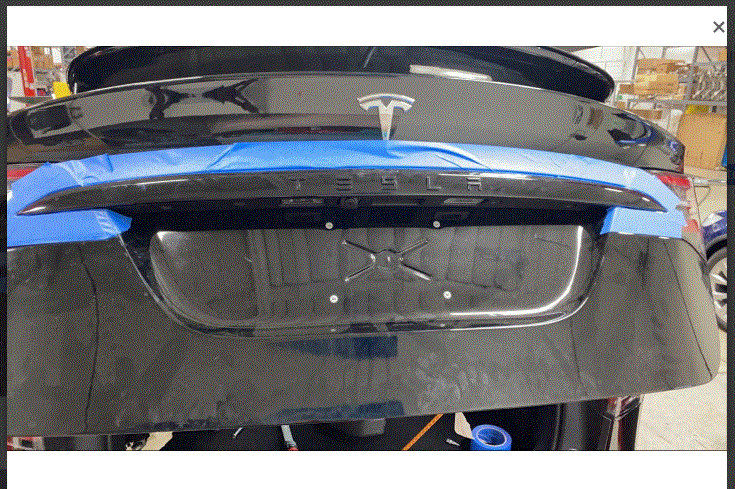

  4. Apply masking tape around the liftgate applique to protect the painted surrounding area.
    G00645891Courtesy of TESLA, INC.

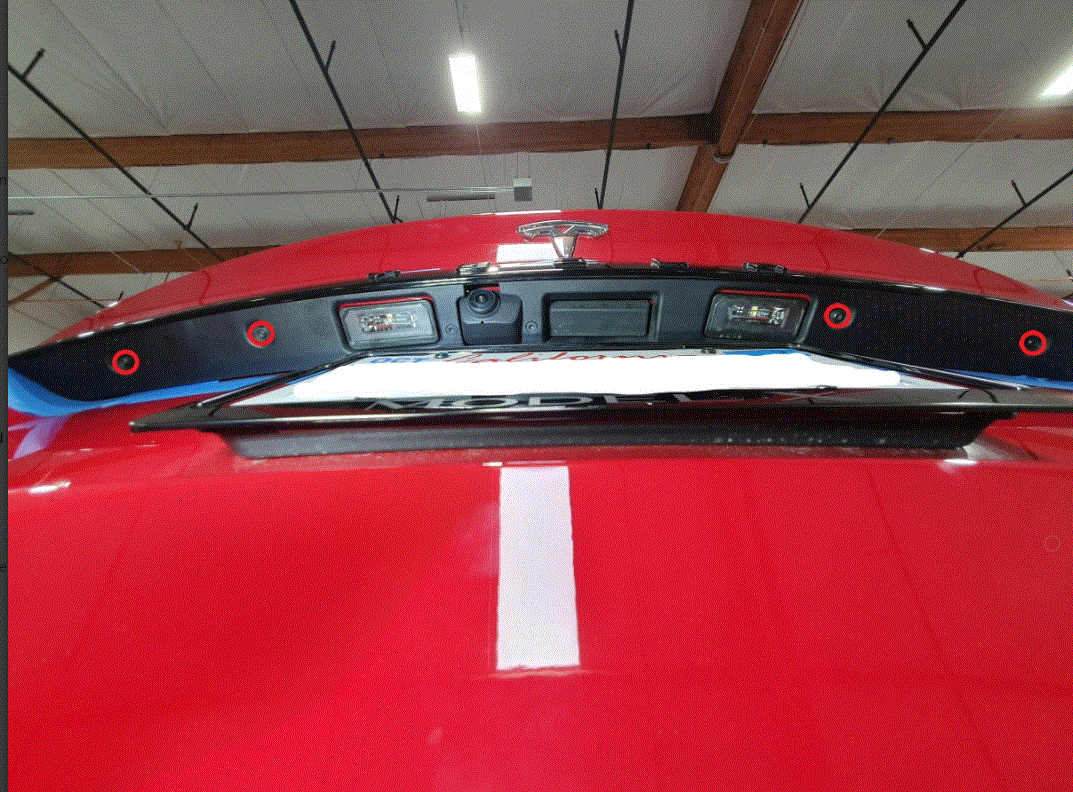

  5. Remove the bolts (x4) that attach the liftgate applique bracket to the liftgate.

    2 N.m (1.5 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • TP20 bit (Mini ratchet bit set - 1450424-00-A)
    G00645892Courtesy of TESLA, INC.

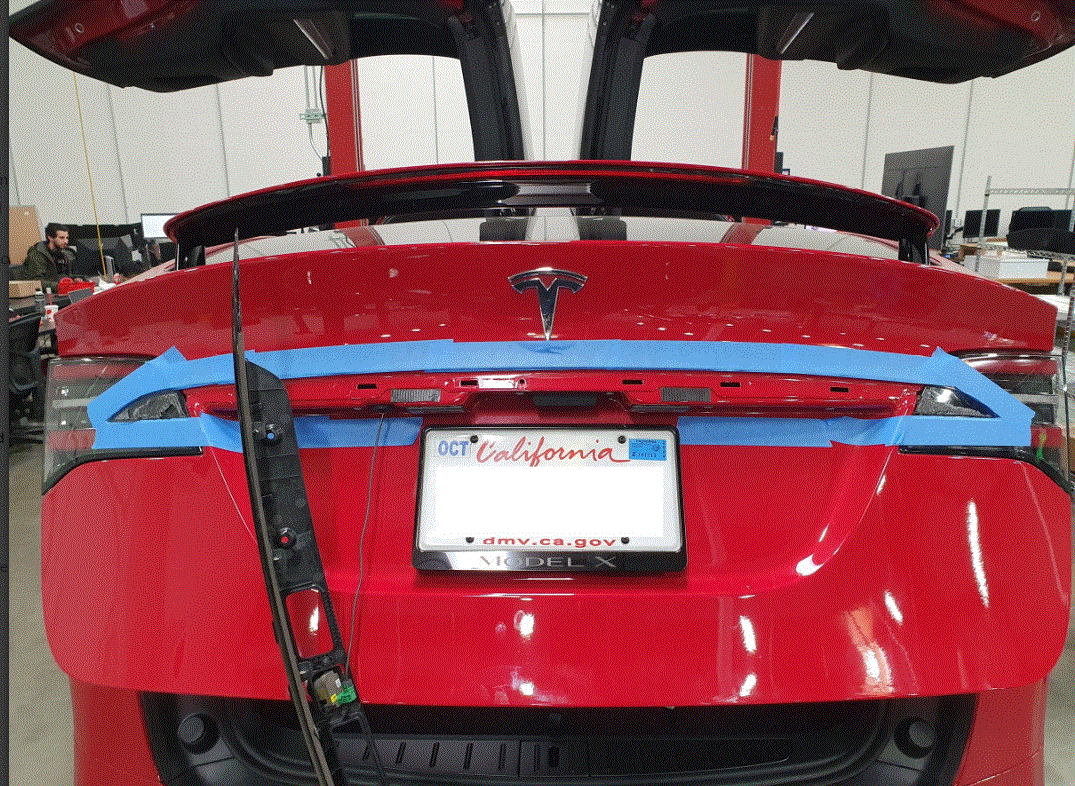

  6. Release the clips (x6) that attach the liftgate applique bracket to the liftgate.
    CAUTION: Take care not to damage the body of the vehicle.

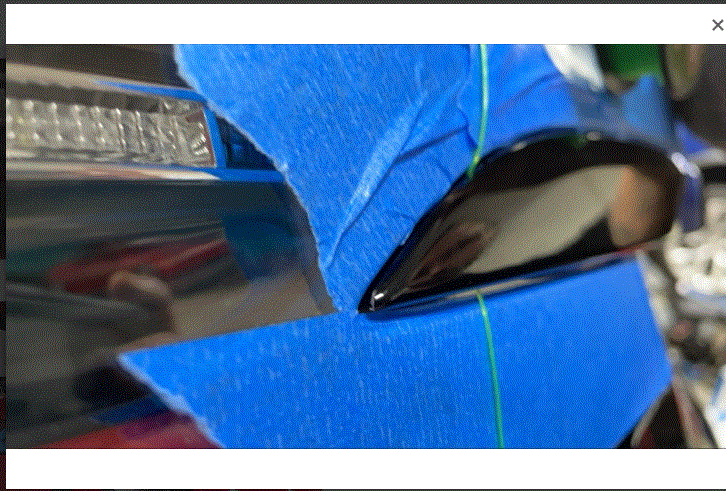

    NOTE: Double-sided tape was used on each end where the applique overlaps the liftgate taillights.
    G00645893Courtesy of TESLA, INC.
    G00645894Courtesy of TESLA, INC.

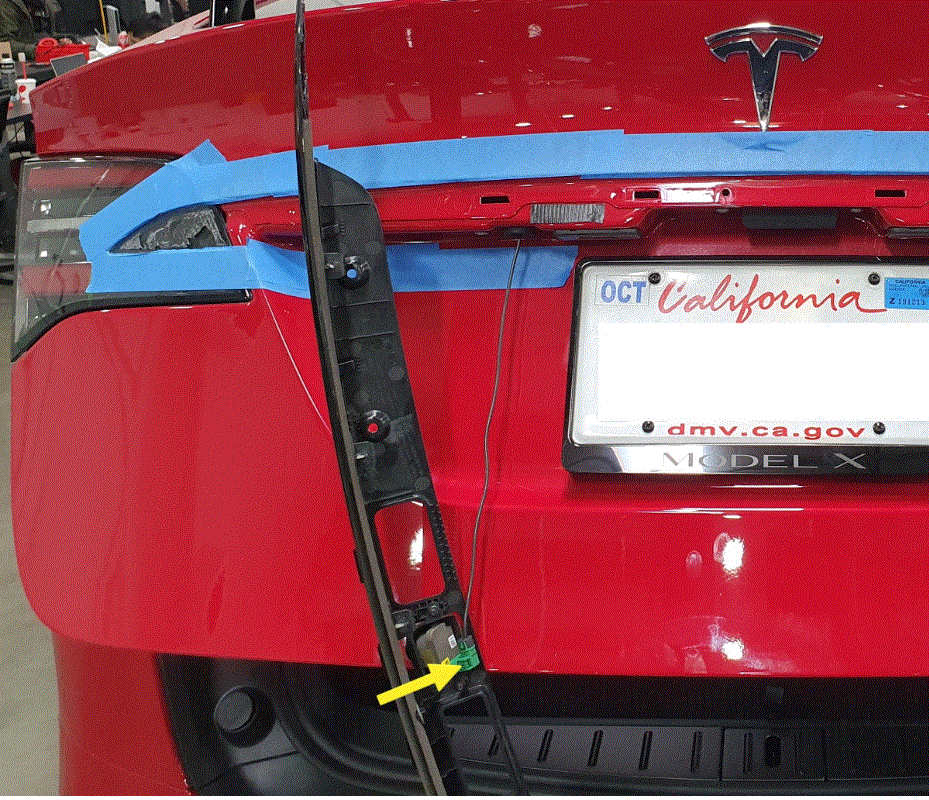

  7. Disconnect the rear facing camera electrical connector.
    NOTE: Push to lift the tab, and then disconnect the electrical connector.

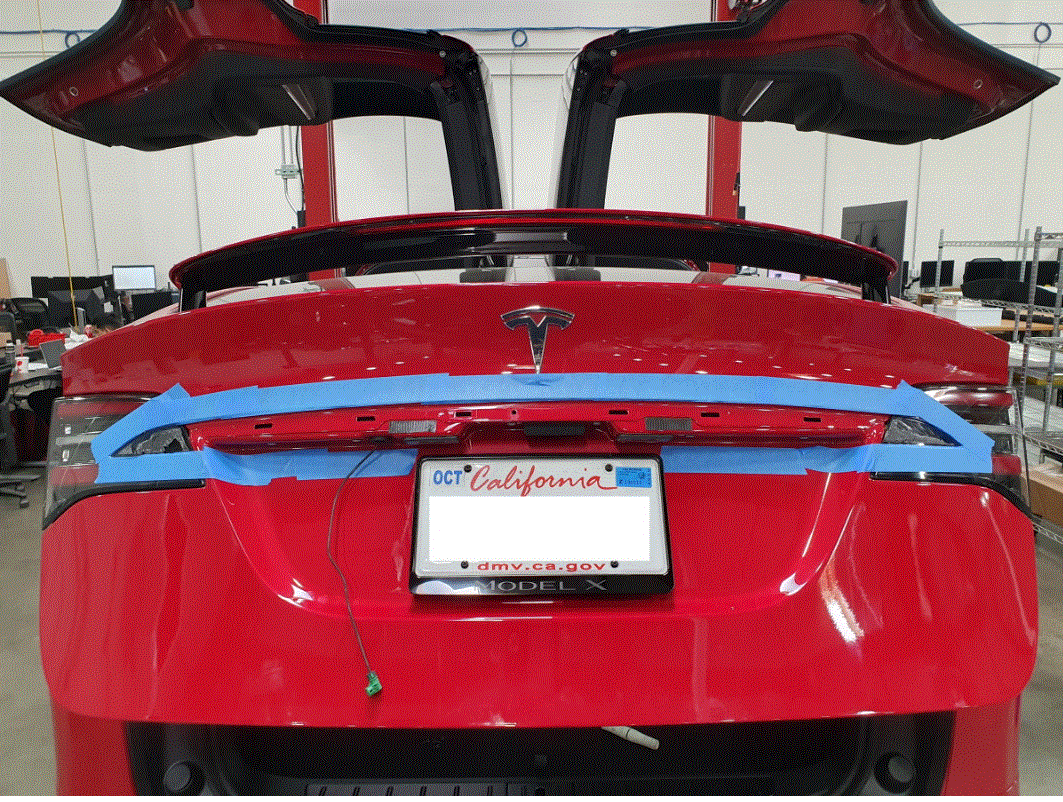

    G00645895Courtesy of TESLA, INC.
    G00645896Courtesy of TESLA, INC.

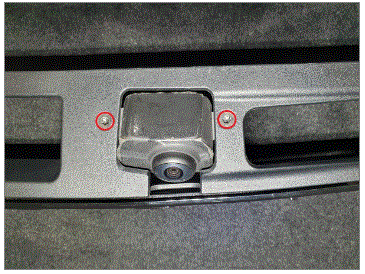

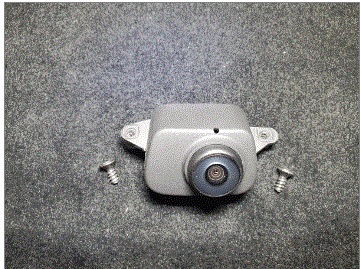

  8. Remove the bolts (x2) that attach the rear facing camera to the liftgate applique bracket, and then remove the camera from the bracket.

    0.8 N.m (7 lbs-in)

    Tip: Use of the following tool(s) is recommended:

    • TP20 bit (Mini ratchet bit set - 1450424-00-A)
    G00645897Courtesy of TESLA, INC.
    G00645898Courtesy of TESLA, INC.
